Alfa Romeo GT Factory Service Manual (2003-2010)21 · Connectors and pin-outs

21 · General

P90 Alarm siren

Make: Alfa Romeo
Model: GT Factory Service Manual
Year: 2003–2010
Section: Various consumers › P90 Alarm siren

‹ Prev P75 CD multi-player Next › P91 Aerial for CODE

Connectors and pin-outsP90 Alarm siren

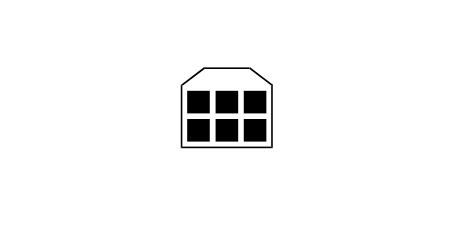

P90 Alarm siren

P90 Alarm siren

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HR		M1A	34
2		SR		M1A	25
3		NV		C10	1
