D85 Rear/tail-gate junction

Make

Alfa Romeo

Model

GT Factory Service Manual

Year

2003–2010

Section

Intermediate couplings › D85 Rear/tail-gate junction

Connectors and pin-outsD85 Rear/tail-gate junction

D85 Rear/tail-gate junction

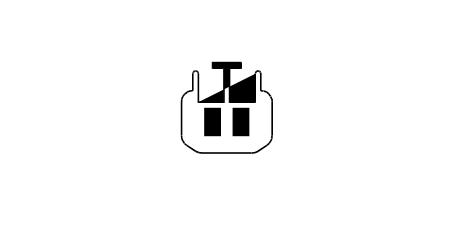

D85A

Wiring	Colour
Connectors

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		M		P55B	1
2		RG		N57	1

Wiring	Colour
Connectors

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		M		B2D	15
2		RG		J56	4

D85B

Wiring	Colour
Connectors	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HM		I11	1
2		HN		I11	3
3		CN		F40	1

Wiring	Colour
Connectors	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HM		M1A	36
2		HN		G40	3
3		CN		B2D	5
