RADIO - COMPONENT LOCATION

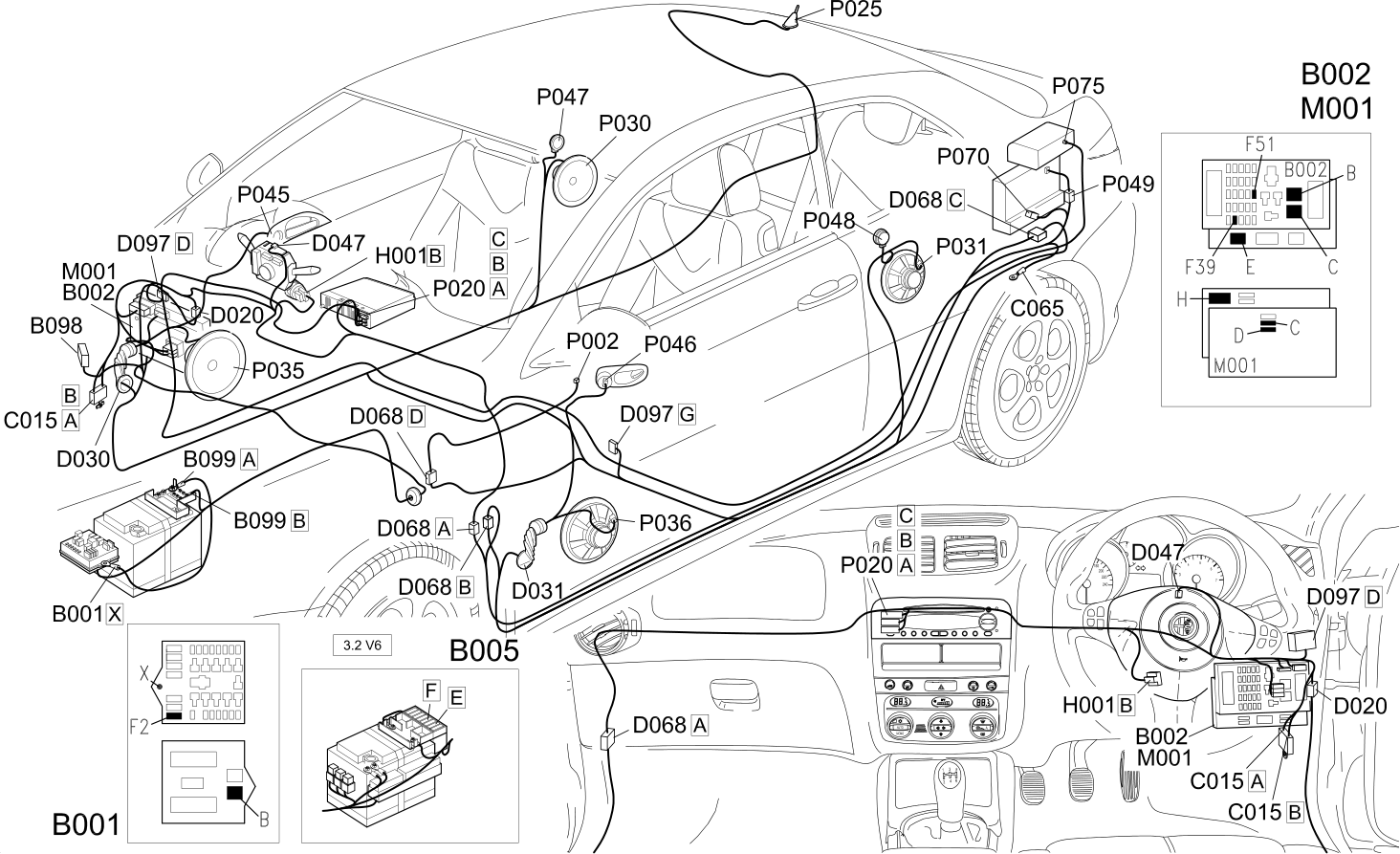

BOSE System

Component location

Components

Component code	Description	Reference to the assembly
B1	JUNCTION UNIT
B1	JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B98	SUPPLEMENTARY FUSE BOX ( REAR )
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C15	FACIA EARTH, DRIVER''S SIDE
C65	HI-FI SYSTEM EARTH
D20	REAR DASHBOARD COUPLING ( REAR )
D30	REAR COUPLING FOR /FRONT DOOR. DRIVER''S SIDE
D31	RIGHT FRONT DOOR REAR COUPLING/.
D41	REAR DASHBOARD COUPLING FOR SPEAKERS ( FACIA )
D47	CLOCK SPRING ON STEERING WHEEL	Op. 5580C AIR BAG SYSTEM
D68	HI SYSTEM JUNCTION
D68	Centre console/rear coupling
D68	Centre console / rear coupling
D97	SHORT CIRCUITING COUPLING
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
P2	INTERIOR MICROPHONE CAPSULE
P20	RADIO	Op. 5570T CAR RADIO AND CAR TELEPHONE
P20	RADIO	Op. 5580P CONNECT PANEL
P25	AERIAL AMPLIFIER FEEDER ( REAR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P30	LEFT REAR SPEAKER ( REAR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P31	RIGHT REAR SPEAKER ( REAR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P35	SPEAKER IN DRIVER''S FRONT DOOR	Op. 5570T CAR RADIO AND CAR TELEPHONE
P36	SPEAKER IN FRONT PASSENGER DOOR ( FRONT PASSENGER DOOR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P45	DRIVER''S FRONT TWEETER SPEAKER	Op. 5570T CAR RADIO AND CAR TELEPHONE
P46	FRONT PASSENGER SIDE TWEETER SPEAKER ( FRONT PASSENGER DOOR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P47	REAR LEFT TWEETER SPEAKER	Op. 5570T CAR RADIO AND CAR TELEPHONE
P48	REAR RIGHT TWEETER SPEAKER	Op. 5570T CAR RADIO AND CAR TELEPHONE
P49	REAR SUBWOOFER SPEAKER ( CONNECTORS )	5580T
P70	BOSE RADIO AMPLIFIER ( CONNECTORS )	5580T
P75	CD MULTI-PLAYER ( CD MULTI )	Op. 5570T CAR RADIO AND CAR TELEPHONE

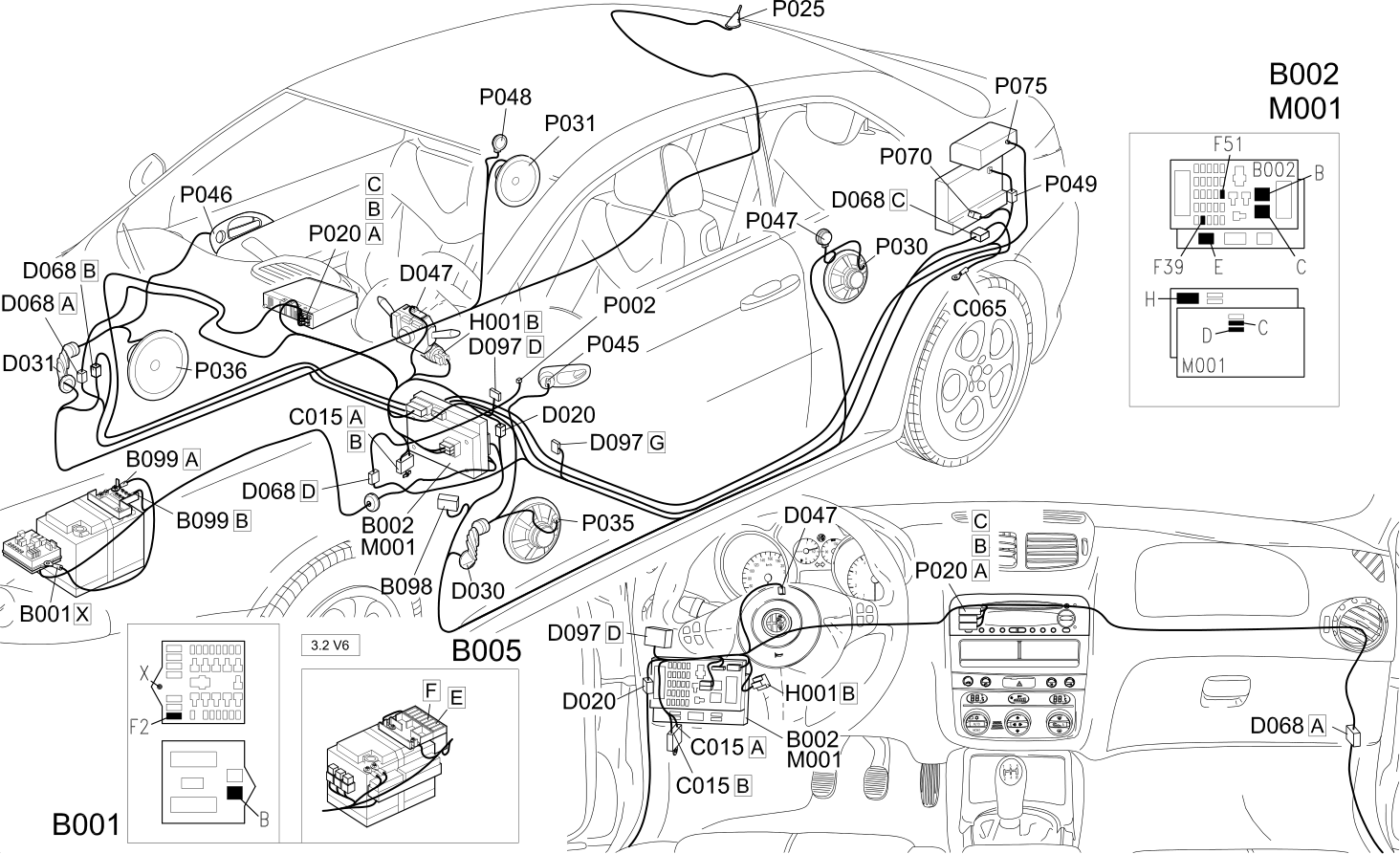

Right hand drive

Component location

Components

Component code	Description	Reference to the assembly
B1	JUNCTION UNIT
B1	JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B98	SUPPLEMENTARY FUSE BOX ( REAR )
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C15	FACIA EARTH, DRIVER''S SIDE
C65	HI-FI SYSTEM EARTH
D20	REAR DASHBOARD COUPLING ( REAR )
D30	REAR COUPLING FOR /FRONT DOOR. DRIVER''S SIDE
D31	RIGHT FRONT DOOR REAR COUPLING/.
D41	REAR DASHBOARD COUPLING FOR SPEAKERS ( FACIA )
D47	CLOCK SPRING ON STEERING WHEEL	Op. 5580C AIR BAG SYSTEM
D68	HI SYSTEM JUNCTION
D68	Centre console/rear coupling
D68	Centre console / rear coupling
D97	SHORT CIRCUITING COUPLING
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
P2	INTERIOR MICROPHONE CAPSULE
P20	RADIO	Op. 5570T CAR RADIO AND CAR TELEPHONE
P20	RADIO	Op. 5580P CONNECT PANEL
P25	AERIAL AMPLIFIER FEEDER ( REAR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P30	LEFT REAR SPEAKER ( REAR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P31	RIGHT REAR SPEAKER ( REAR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P35	SPEAKER IN DRIVER''S FRONT DOOR	Op. 5570T CAR RADIO AND CAR TELEPHONE
P36	SPEAKER IN FRONT PASSENGER DOOR ( FRONT PASSENGER DOOR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P45	DRIVER''S FRONT TWEETER SPEAKER	Op. 5570T CAR RADIO AND CAR TELEPHONE
P46	FRONT PASSENGER SIDE TWEETER SPEAKER ( FRONT PASSENGER DOOR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P47	REAR LEFT TWEETER SPEAKER	Op. 5570T CAR RADIO AND CAR TELEPHONE
P48	REAR RIGHT TWEETER SPEAKER	Op. 5570T CAR RADIO AND CAR TELEPHONE
P49	REAR SUBWOOFER SPEAKER ( CONNECTORS )	5580T
P70	BOSE RADIO AMPLIFIER ( CONNECTORS )	5580T
P75	CD MULTI-PLAYER ( CD MULTI )	Op. 5570T CAR RADIO AND CAR TELEPHONE

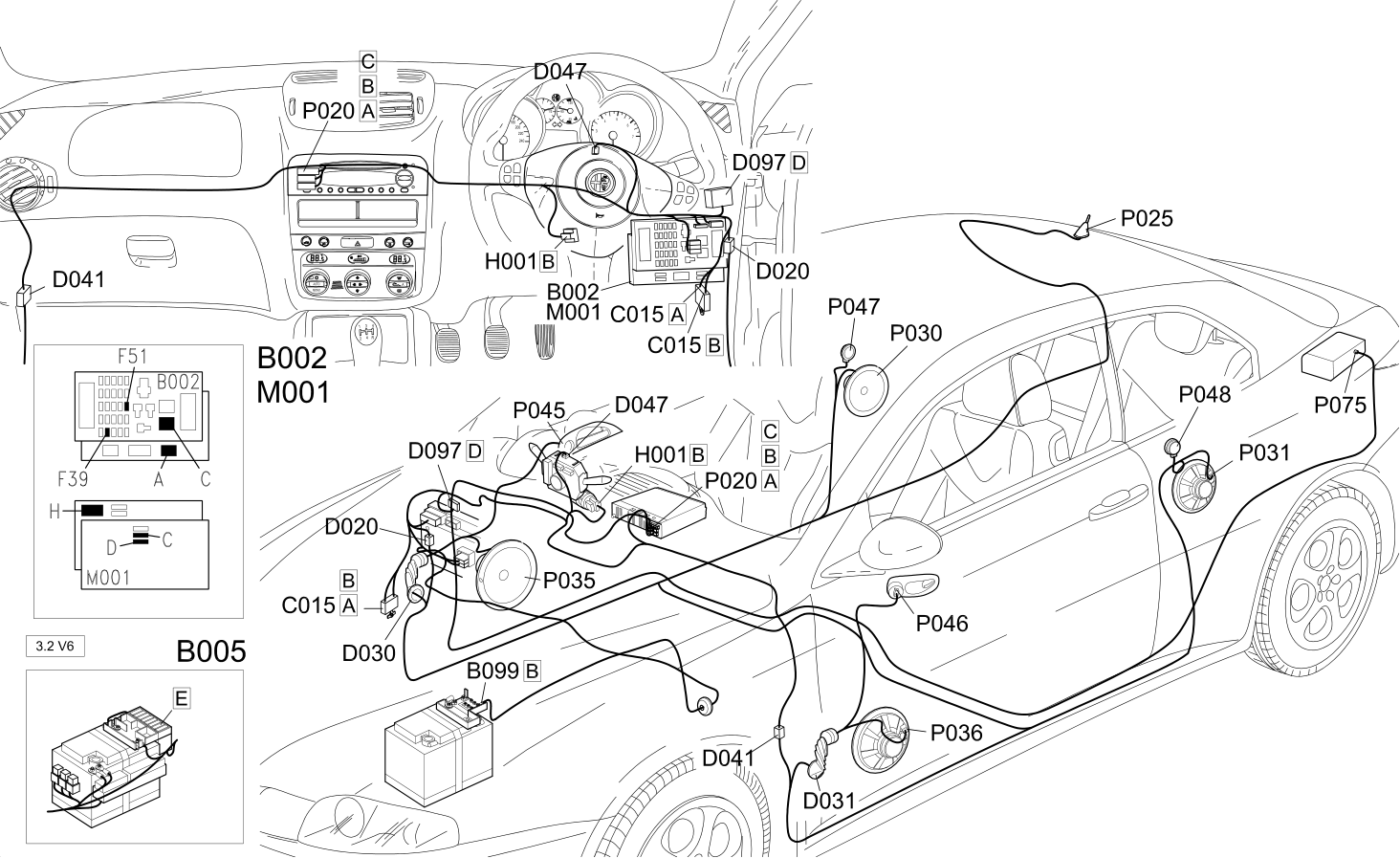

BOSE System, Right hand drive

Component location

Components

Component code	Description	Reference to the assembly
B1	JUNCTION UNIT
B1	JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B98	SUPPLEMENTARY FUSE BOX ( REAR )
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C15	FACIA EARTH, DRIVER''S SIDE
C65	HI-FI SYSTEM EARTH
D20	REAR DASHBOARD COUPLING ( REAR )
D30	REAR COUPLING FOR /FRONT DOOR. DRIVER''S SIDE
D31	RIGHT FRONT DOOR REAR COUPLING/.
D41	REAR DASHBOARD COUPLING FOR SPEAKERS ( FACIA )
D47	CLOCK SPRING ON STEERING WHEEL	Op. 5580C AIR BAG SYSTEM
D68	HI SYSTEM JUNCTION
D68	Centre console/rear coupling
D68	Centre console / rear coupling
D97	SHORT CIRCUITING COUPLING
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
P2	INTERIOR MICROPHONE CAPSULE
P20	RADIO	Op. 5570T CAR RADIO AND CAR TELEPHONE
P20	RADIO	Op. 5580P CONNECT PANEL
P25	AERIAL AMPLIFIER FEEDER ( REAR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P30	LEFT REAR SPEAKER ( REAR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P31	RIGHT REAR SPEAKER ( REAR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P35	SPEAKER IN DRIVER''S FRONT DOOR	Op. 5570T CAR RADIO AND CAR TELEPHONE
P36	SPEAKER IN FRONT PASSENGER DOOR ( FRONT PASSENGER DOOR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P45	DRIVER''S FRONT TWEETER SPEAKER	Op. 5570T CAR RADIO AND CAR TELEPHONE
P46	FRONT PASSENGER SIDE TWEETER SPEAKER ( FRONT PASSENGER DOOR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P47	REAR LEFT TWEETER SPEAKER	Op. 5570T CAR RADIO AND CAR TELEPHONE
P48	REAR RIGHT TWEETER SPEAKER	Op. 5570T CAR RADIO AND CAR TELEPHONE
P49	REAR SUBWOOFER SPEAKER ( CONNECTORS )	5580T
P70	BOSE RADIO AMPLIFIER ( CONNECTORS )	5580T
P75	CD MULTI-PLAYER ( CD MULTI )	Op. 5570T CAR RADIO AND CAR TELEPHONE

All versions

Component location

Components

Component code	Description	Reference to the assembly
B1	JUNCTION UNIT
B1	JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B5	MAXI FUSE-1 BOX
B98	SUPPLEMENTARY FUSE BOX ( REAR )
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C15	FACIA EARTH, DRIVER''S SIDE
C65	HI-FI SYSTEM EARTH
D20	REAR DASHBOARD COUPLING ( REAR )
D30	REAR COUPLING FOR /FRONT DOOR. DRIVER''S SIDE
D31	RIGHT FRONT DOOR REAR COUPLING/.
D41	REAR DASHBOARD COUPLING FOR SPEAKERS ( FACIA )
D47	CLOCK SPRING ON STEERING WHEEL	Op. 5580C AIR BAG SYSTEM
D68	HI SYSTEM JUNCTION
D68	Centre console/rear coupling
D68	Centre console / rear coupling
D97	SHORT CIRCUITING COUPLING
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
P2	INTERIOR MICROPHONE CAPSULE
P20	RADIO	Op. 5570T CAR RADIO AND CAR TELEPHONE
P20	RADIO	Op. 5580P CONNECT PANEL
P25	AERIAL AMPLIFIER FEEDER ( REAR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P30	LEFT REAR SPEAKER ( REAR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P31	RIGHT REAR SPEAKER ( REAR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P35	SPEAKER IN DRIVER''S FRONT DOOR	Op. 5570T CAR RADIO AND CAR TELEPHONE
P36	SPEAKER IN FRONT PASSENGER DOOR ( FRONT PASSENGER DOOR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P45	DRIVER''S FRONT TWEETER SPEAKER	Op. 5570T CAR RADIO AND CAR TELEPHONE
P46	FRONT PASSENGER SIDE TWEETER SPEAKER ( FRONT PASSENGER DOOR )	Op. 5570T CAR RADIO AND CAR TELEPHONE
P47	REAR LEFT TWEETER SPEAKER	Op. 5570T CAR RADIO AND CAR TELEPHONE
P48	REAR RIGHT TWEETER SPEAKER	Op. 5570T CAR RADIO AND CAR TELEPHONE
P49	REAR SUBWOOFER SPEAKER ( CONNECTORS )	5580T
P70	BOSE RADIO AMPLIFIER ( CONNECTORS )	5580T
P75	CD MULTI-PLAYER ( CD MULTI )	Op. 5570T CAR RADIO AND CAR TELEPHONE
