P70 Bose radio amplifier

Make

Alfa Romeo

Model

GT Factory Service Manual

Year

2003–2010

Section

Various consumers › P70 Bose radio amplifier

Connectors and pin-outsP70 Bose radio amplifier

P70 Bose radio amplifier

BOSE System

Wiring	Colour

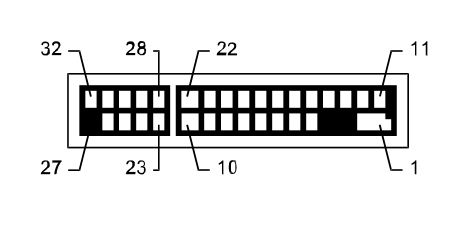

Connectors

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	R		D68C	3
2	2,5	N	X	C65
				D68C	5
3	1,5	AV		P49	3
4	1,5	CV		D68B	3
5	1,5	AR		D68B	6
6	1	H		D68A	9
7		BN		D68A	2
8		NZ		D68A	8
9		CB		D68A	4
10		AB		D68A	6
11	1,5	HG		P49	1
12	1,5	HL		P49	2
15	1,5	BG		P49	4
16	1,5	GN		D68B	4
17	1,5	BN		D68B	5
19		RN		D68A	1
20		SN		D68A	7
21		CN		D68A	3
22		AS		D68A	5
26	1,5	NZ		D68B	7
27	1,5	SB		D68B	8
29		M		D68C	1
30		B		D68C	2
31	1,5	RV		D68B	2
32	1,5	BV		D68B	1
