CONNECT PANEL REPLACE
Removing
1. Fit the tools (1.871.003.000) in the special housings in the Connect panel making sure that they are correctly attached.
1. Extract the Connect panel pulling the tools.

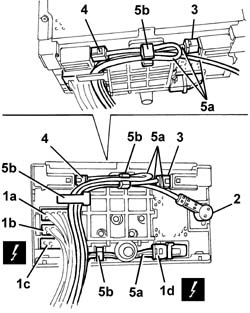

1. Disconnect the electrical connections (1a, 1b, 1c, 1d).
| Description | Connector | |
|---|---|---|
| 1a | Radio | See P20A RADIO ( FACIA ) |
| Description | Connector | |
|---|---|---|
| 1b | Radio | See P20B RADIO ( FACIA ) |
| Description | Connector | |
|---|---|---|
| 1c | Radio | See P20C RADIO ( FACIA ) |
| Description | Connector | |
|---|---|---|
| 1d | Radio | See P20D RADIO ( FACIA ) |
2. Disconnect the radio aerial.
3. Disconnect the GPS aerial.
4. Disconnect the GSM aerial.
5. Release the wiring (5a) from the retainers (5b).
6. Keep the Connect panel.
Refitting
Check that the Connect panel is not damaged.
1. Connect the electrical connections and the connections for the aerials.

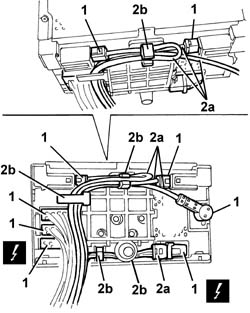

2. Position the wiring (2a) carefully as illustrated and secure it to the retainers (2b).
Place the Connect panel in position taking great care and avoiding any interference with the cables at the back. If there is interference, check that the cables are correctly positioned (see previous diagram).
Check the operation of the Connect panel.
