P75 CD multi-player

Make

Alfa Romeo

Model

GT Factory Service Manual

Year

2003–2010

Section

Various consumers › P75 CD multi-player

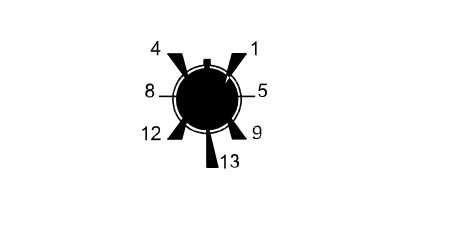

Connectors and pin-outsP75 CD multi-player

P75 CD multi-player

Wiring	Colour
79 CD MULTI

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	1	M		P20C	17
3	1	R		P20C	15
4	1	V		P20C	16
6		SCH		P20C	18
8	1	G		P20C	20
10	1	L		P20C	13
12	1	C		P20C	19
13	1	B		P20C	14

21 General
