D68 Bose system coupling

Make

Alfa Romeo

Model

GT Factory Service Manual

Year

2003–2010

Section

Intermediate couplings › D68 Bose system coupling

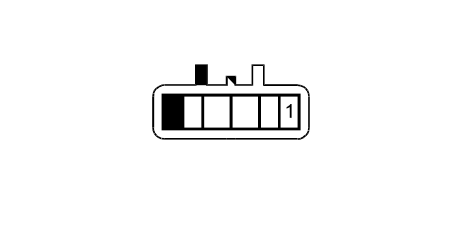

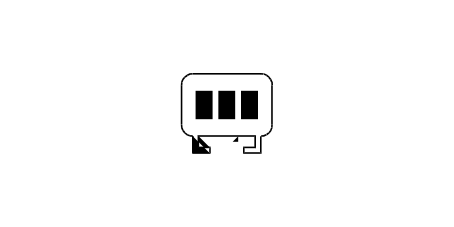

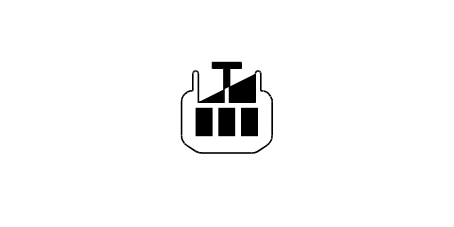

Connectors and pin-outsD68 Bose system coupling

D68 Bose system coupling

D68A – Facia

BOSE System

Wiring	Colour
20 FACIA	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	SN		P20B	5
2	1,5	NZ		P20B	6
3	1,5	CN		P20B	7
4	1,5	CB		P20B	8
5	1,5	AG		P20B	1
6	1,5	AR		P20B	2
7	1,5	RN		P20B	3
8	1,5	BN		P20B	4
9	1	H		P20C	6

D68A

BOSE System

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		SN		P70	19
2		BN		P70	7
3		CN		P70	21
4		CB		P70	7
5		AS		P70	22
6		AB		P70	10
7		RN		P70	20
8		BN		P70	8
9	1	H		P70	6

D68B

BOSE System

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	BV		P70	32
2	1,5	RV		P70	31
3	1,5	CV		P70	4
4	1,5	GN		P70	16
5	1,5	BN		P70	17
6	1,5	AR		P70	5
7	1,5	NZ		P70	26
8	1,5	SB		P70	27

D68B – Rear

BOSE System

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	BV		D30	24
2	1,5	RV		D30	25
3	1,5	CV		P30	2
4	1,5	GN		P30	1
5	1,5	AG		P48	2
6	1,5	AR		P48	1
7	1,5	NZ		D31	24
8	1,5	SB		D31	23

D68C – Rear

BOSE System

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		SCH		D68D	3
2		M		D68D	1
3	2,5	R		B98	2
5		B		D68D	2

D68C

BOSE System

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		M		P70	29
2		B		P70	30
3	2,5	R		P70	1
5		N	X	P70	2
				C65

D68D

Wiring	Colour
Connectors

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		M		P2	B
2		B		P2	A
3		SCH		P2

BOSE System

Wiring	Colour
Connectors

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		M		D68C	2
2		B		D68C	5
3		SCH		D68C	1

21 General
