Controls lighting - wiring diagram

Make

Alfa Romeo

Model

Brera and Spider Factory Service Manual

Year

2005–2010

Section

Interior lighting › Controls lighting - wiring diagram

Wiring diagrams and electrical functionsControls lighting - wiring diagram

CONTROLS LIGHTING - WIRING DIAGRAM

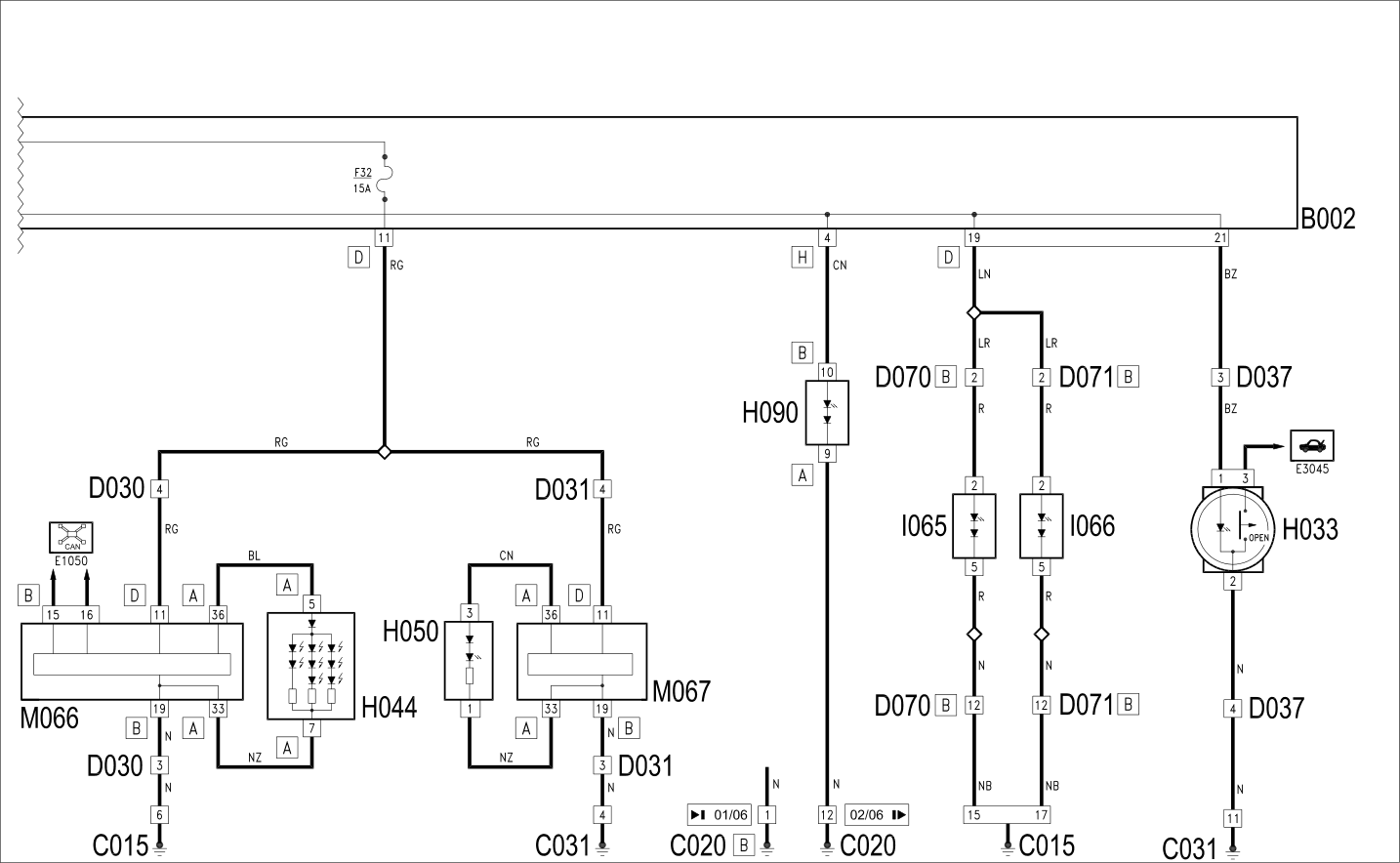

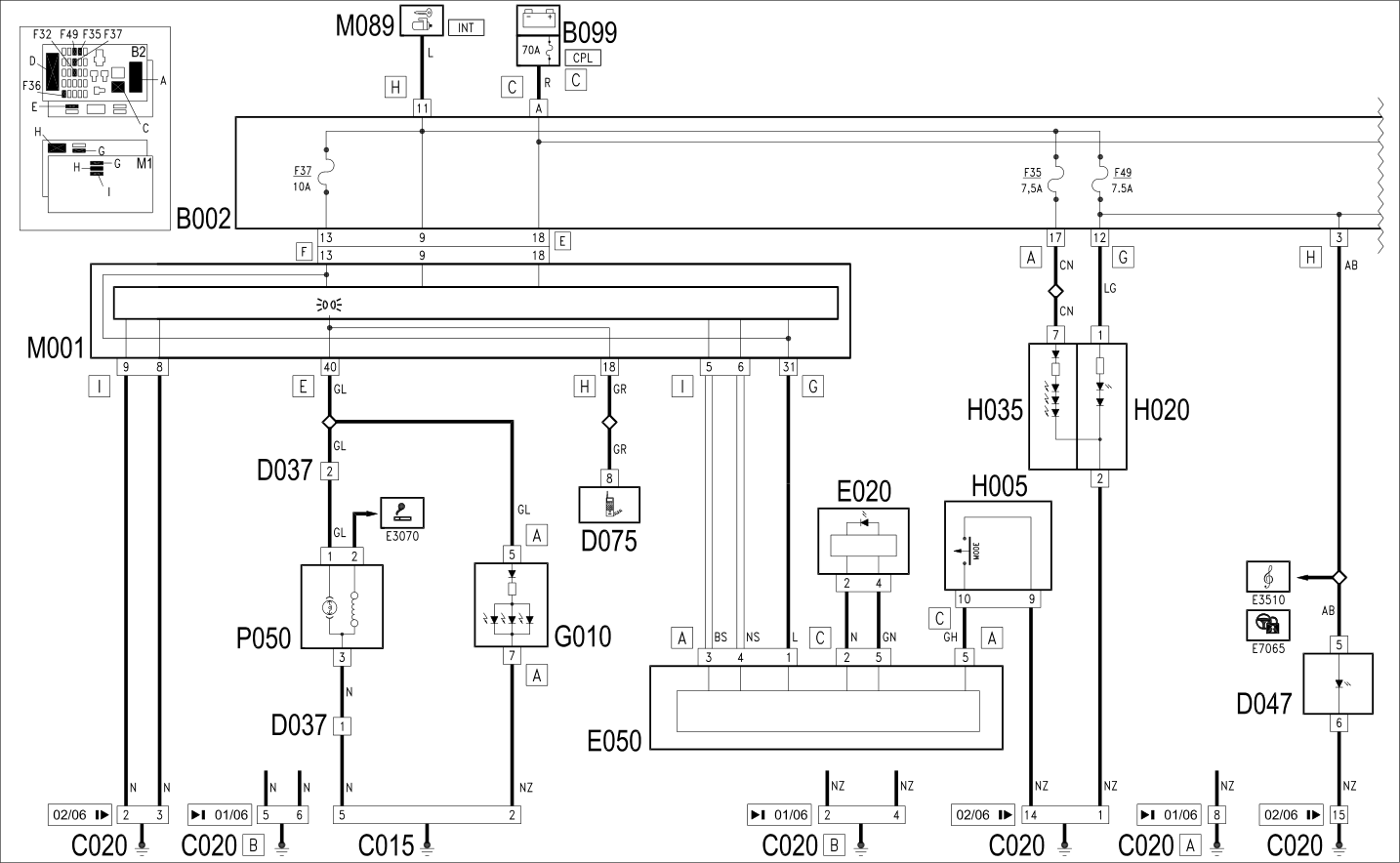

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C020	PASSENGER SIDE DASHBOARD EARTH
C031	RIGHT REAR EARTH
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D037	REAR COUPLING/ CENTRE CONSOLE
D047	CLOCK SPRING COUPLING	Op. 5580C12 CLOCK SPRING FOR AIR BAG MODULE ON STEERING WHEEL - R.R
D070	DRIVER'S SEAT COUPLING
D071	PASSENGER SEAT COUPLING
D075	RADIO PHONE COUPLING
E020	ANCILLARY INSTRUMENT	Op. 5560C51 COMBINED ANALOGUE CONTROL PANEL - R+R OR REPLACE
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
G010	FRONT COURTESY LIGHT	Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R
H005	STEERING COLUMN SWITCH UNIT	Op. 5550A10 STALK UNIT ASSEMBLY - R+R
H020	HAZARD WARNING LIGHTS SWITCH	Op. 7040L37 GEAR LEVER TRIM - R.R
H033	BOOT CENTRAL OPENING SWITCH	Op. 7015B81 TAILGATE OPENING CONTROL SWITCH - R.R.
H035	TUNNEL SWITCHES	Op. 7040L37 GEAR LEVER TRIM - R.R
H044	ELECTRIC WINDOW CONTROLS ON FRONT DRIVER'S DOOR	Op. 7005M14 SWITCH UNIT ON DRIVER'S FRONT DOOR - R.R.
H050	ELECTRIC WINDOW SWITCH ON FRONT PASSENGER'S DOOR	Op. 7005M12 PASSENGER SIDE FRONT DOOR ELECTRICALLY OPERATED WINDOW SWITCH - R.R.
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
I065	DRIVER'S SEAT HEATING SWITCH
I066	PASSENGER SEAT HEATING SWITCH
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M066	DRIVER'S DOOR CONTROL UNIT (NPG)	Op. 5505A43 CONTROL UNIT (DIGITAL NETWORK NODE) IN DRIVER'S DOOR - R.R. WITH PANEL REMOVED
M067	PASSENGER DOOR CONTROL UNIT (NPP)	Op. 5505A47 PASSENGER SIDE DOOR CONTROL UNIT DIGITAL NETWORK MODE R R WITH PANEL REMOVED
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
P050	CIGAR LIGHTER / CURRENT SOCKET	Op. 7065C72 FRONT CIGAR LIGHTER SOCKET - R.R.
