H090 SWITCH CONTROL PANEL

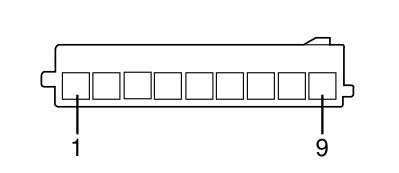

H090A – Dashboard

from 02/06

Wiring	Colour
See 20 DASHBOARD	MARRONE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HV		See M001I BODY COMPUTER (DASHBOARD)	1
5		AR		See B002G JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	18
6		HR		See E050C INSTRUMENT PANEL (DASHBOARD)	7
7		HN		See M001G BODY COMPUTER (DASHBOARD)	35
8		N		See C020 PASSENGER SIDE DASHBOARD EARTH	11
9		N		See C020 PASSENGER SIDE DASHBOARD EARTH	12

up to 01/06

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HV		See M001I BODY COMPUTER (DASHBOARD)	1
5		AR		See B002G JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	18
6		HR		See E050C INSTRUMENT PANEL (DASHBOARD)	7
7		HN		See M001G BODY COMPUTER (DASHBOARD)	35
8		N		See C020B PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)	3
9		N		See C020B PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)	1

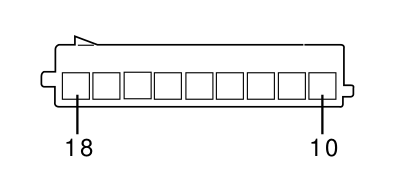

H090B – Dashboard

Wiring	Colour
See 20 DASHBOARD	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
10		CN		See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	4
14		LM		See M001H BODY COMPUTER (DASHBOARD)	17
15		CN		See B002G JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	14
