STEERING LOCK - R.R

Operation 5580E17 · ANTI-THEFT DEVICE

Removing

- With the electronic key (TEG) inserted, disconect the battery. In this way, the steering lock remains disengaged.

1. Undo the bolts.

2. Remove the lower steering column trim.

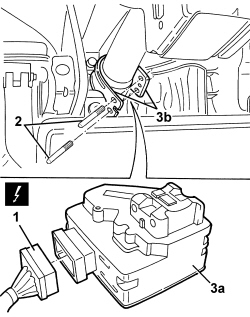

1. Disconnect the electrical connection.

2. Remove the shear bolts using a drift and mallet.

3. Remove steering lock device (3a) releasing it from brackets (3b).

Refitting

- Check that the steering lock device is not damaged.

- Position the steering lock device in its seat.

- Screw in and tighten the new special bolts until the heads shear off.

- Connect the electrical connection.

- Position the lower steering column cover and tighten the fixing bolts.

Several of the CAN nodes, including the instrument panel, are programmed with default settings that customers will find when they acquire the vehicle. If the panel is replaced, the Parts Dept. will send a blank component. once fitted, the data memorized in the Body Computer must be transferred to it by carrying out the PROXY ALIGNMENT procedure using the Examiner.

- Check that the steering lock is working.
