C020 passenger side dashboard earth
- Make
- Alfa Romeo
- Model
- Brera and Spider Factory Service Manual
- Year
- 2005–2010
- Section
- Earths › C020 passenger side dashboard earth
Connectors and pin-outsC020 passenger side dashboard earth
C020 PASSENGER SIDE DASHBOARD EARTH
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |

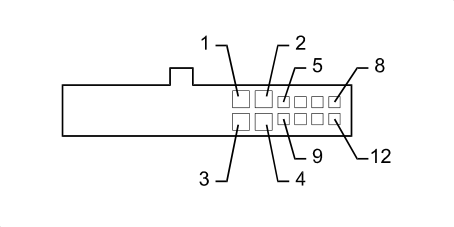

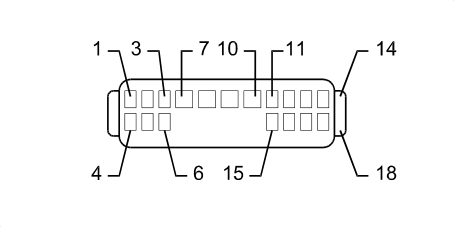

C020A – Dashboard
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2 | 1.5 | N | See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD) | 10 | |
| 3 | 2.5 | N | See P020A RADIO (DASHBOARD) | 8 | |
| 4 | NZ | See M162A BLUETOOTH CONTROL UNIT (DASHBOARD) | 15 | ||
| 5 | N | See G030 GLOVE COMPARTMENT LIGHT | 1 | ||
| 8 | NZ | See D047 CLOCK SPRING COUPLING | 6 | ||
| 9 | N | See H002 STARTING PUSH BUTTON | 2 | ||
| 10 | N | See D075 RADIO PHONE COUPLING | 10 | ||
| 11 | N | See H003 IGNITION DEVICE | 7 | ||
| 12 | N | See M089 STEERING LOCK CONTROL UNIT (NBS) | A4 | ||

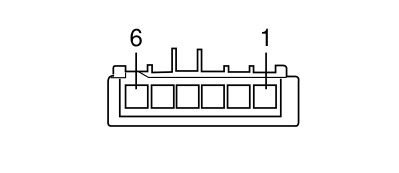

C020B – Dashboard
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | N | See H090A SWITCH CONTROL PANEL (DASHBOARD) | 9 | ||
| 2 | NZ | See H005C STEERING COLUMN SWITCH UNIT (DASHBOARD) | 9 | ||
| 3 | N | See H090A SWITCH CONTROL PANEL (DASHBOARD) | 8 | ||
| 4 | NZ | See H020 HAZARD WARNING LIGHTS SWITCH | 2 | ||
| 5 | N | See M001I BODY COMPUTER (DASHBOARD) | 9 | ||
| 6 | N | See M001I BODY COMPUTER (DASHBOARD) | 8 | ||
