G010 front courtesy light
- Make
- Alfa Romeo
- Model
- Brera and Spider Factory Service Manual
- Year
- 2005–2010
- Section
- Interior lights › G010 front courtesy light
Connectors and pin-outsG010 front courtesy light

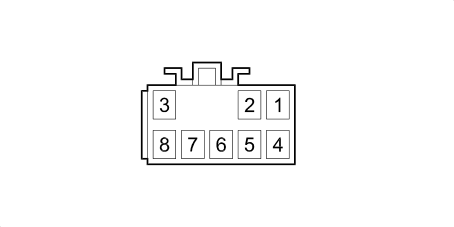

G010 FRONT COURTESY LIGHT
G010A – Rear
| Wiring | Colour |
|---|---|
| See 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | LR | X | See B002D JUNCTION UNIT UNDER DASHBOARD (REAR) | 23 | |
| See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR | 1 | ||||
| See G010G FRONT COURTESY LIGHT (REAR) | 5 | ||||
| 2 | AR | See M001E BODY COMPUTER (REAR) | 28 | ||
| 3 | AB | See M060B AIR BAG CONTROL UNIT (REAR) | 25 | ||
| 4 | AM | See M060B AIR BAG CONTROL UNIT (REAR) | 22 | ||
| 5 | GL | X | See M001E BODY COMPUTER (REAR) | 40 | |
| See D037 REAR COUPLING/ CENTRE CONSOLE | 2 | ||||
| 6 | 1 | RV | See M001E BODY COMPUTER (REAR) | 27 | |
| 7 | 1 | NZ | See C015 DASHBOARD EARTH, DRIVER'S SIDE | 2 | |
| 8 | VN | See M001E BODY COMPUTER (REAR) | 21 | ||
| 9 | AL | X | See M060B AIR BAG CONTROL UNIT (REAR) | 26 | |
| See D020A DASHBOARD/REAR COUPLING (DASHBOARD) | 1 | ||||
| 11 | MB | See M001E BODY COMPUTER (REAR) | 30 | ||
| 12 | M | See M001E BODY COMPUTER (REAR) | 37 | ||
G010B – Rear
| Wiring | Colour |
|---|---|
| See 25 REAR | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | AL | See M185 SLIDING BLIND CONTROL UNIT ON ROOF | 5 | ||
| 2 | AB | See M185 SLIDING BLIND CONTROL UNIT ON ROOF | 10 | ||
| 3 | BL | See D006 FRONT/REAR COUPLING | 3 | ||
| 4 | LS | See M001D BODY COMPUTER (REAR) | 19 | ||

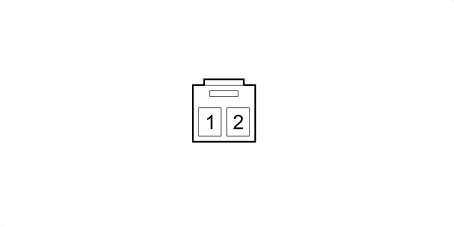

G010D – Rear
| Wiring | Colour |
|---|---|
| See 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | B | See D020A DASHBOARD/REAR COUPLING (DASHBOARD) | 7 | ||
| 2 | SCH | See D020A DASHBOARD/REAR COUPLING (DASHBOARD) | 6 | ||

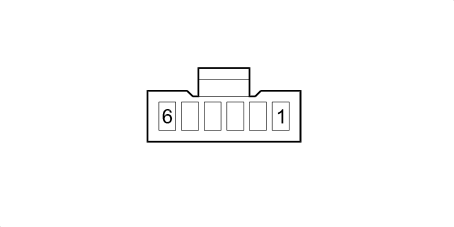

G010G – Rear
| Wiring | Colour |
|---|---|
| See 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | BR | See D020A DASHBOARD/REAR COUPLING (DASHBOARD) | 9 | ||
| 2 | BN | See D020A DASHBOARD/REAR COUPLING (DASHBOARD) | 8 | ||
| 3 | BV | See D020A DASHBOARD/REAR COUPLING (DASHBOARD) | 2 | ||
| 4 | BM | See D020A DASHBOARD/REAR COUPLING (DASHBOARD) | 3 | ||
| 5 | LR | X | See B002D JUNCTION UNIT UNDER DASHBOARD (REAR) | 23 | |
| See G010A FRONT COURTESY LIGHT (REAR) | 1 | ||||
| See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR | 1 | ||||
| 6 | N | See C015 DASHBOARD EARTH, DRIVER'S SIDE | 14 | ||
