D075 radio phone coupling

Make

Alfa Romeo

Model

Brera and Spider Factory Service Manual

Year

2005–2010

Section

Intermediate couplings › D075 radio phone coupling

Connectors and pin-outsD075 radio phone coupling

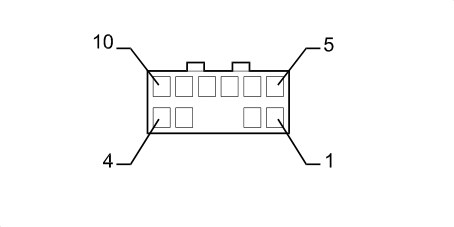

D075 RADIO PHONE COUPLING

from 02/06

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		H		See P020D RADIO (DASHBOARD)	9
3		S		See P020D RADIO (DASHBOARD)	8
4		M		See P020D RADIO (DASHBOARD)	7
5		B		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	7
6		SCH		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	6
7		AB	X	See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	3
				See D047 CLOCK SPRING COUPLING	5
				See H002 STARTING PUSH BUTTON	1
8		GR	X	See M001H BODY COMPUTER (DASHBOARD)	18
9		C		See M001H BODY COMPUTER (DASHBOARD)	26
10		N		See C020 PASSENGER SIDE DASHBOARD EARTH	17

up to 01/06

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		H		See P020D RADIO (DASHBOARD)	9
3		S		See P020D RADIO (DASHBOARD)	8
4		M		See P020D RADIO (DASHBOARD)	7
5		B		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	7
6		SCH		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	6
7		AB	X	See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	3
				See D047 CLOCK SPRING COUPLING	5
				See H002 STARTING PUSH BUTTON	1
8		GR	X	See M001H BODY COMPUTER (DASHBOARD)	18
9		C		See M001H BODY COMPUTER (DASHBOARD)	26
10		N		See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)	10
