SpecificationsVehicle dimensions

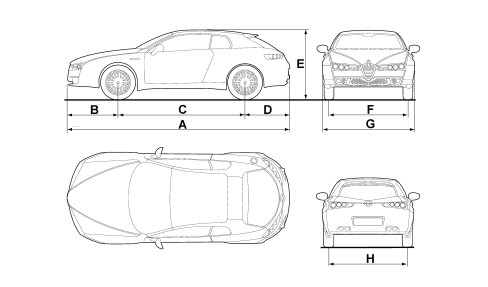

VEHICLE DIMENSIONS

Dimensions are expressed in mm and refer to the vehicle equipped with its original tyres.

Minimum variations in measurements with optional tyres fitted.

Height is measured with vehicle unladen.

	2.2 JTS	3.2 JTS	2.4 JTD 20v
A (mm)	4410	4410	4410
B (mm)	1000	1000	1000
C (mm)	2528	2528	2528
D (mm)	882	882	882
E (mm)	1341	1341	1341
F (mm)	1593 1579 (*)	1593 1579 (*)	1593 1579 (*)
G (mm)	1830	1830	1830
H (mm)	1575 1559 (*)	1575 1559 (*)	1575 1559 (*)

(*) With 225/50 R17” tyres

Luggage compartment capacity (V.D.A. standards): 220 dm³ or 300 dm³ depending on the version
