H035 tunnel switches

Make

Alfa Romeo

Model

Brera and Spider Factory Service Manual

Year

2005–2010

Section

Manual electric controls › H035 tunnel switches

Connectors and pin-outsH035 tunnel switches

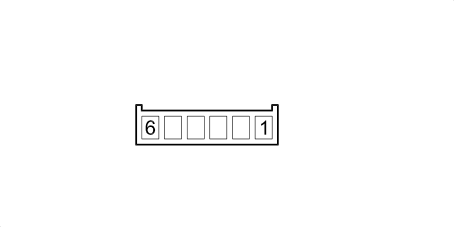

H035 TUNNEL SWITCHES

Wiring	Colour
See 12 FRONT	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2		SV		See D006 FRONT/REAR COUPLING	11
3		SZ		See D001 FRONT/DASHBOARD COUPLING	20
6		AV		See M050 ABS CONTROL UNIT	3
7		CN	X	See B002A JUNCTION UNIT UNDER DASHBOARD (FRONT)	17
				See K064 EXHAUST GAS PRESENCE SENSOR	2
				See H007 CRUISE CONTROL SYSTEM CONTROL	2
				K100	3
				See D004A FRONT/ENGINE COUPLING (FRONT)	2
8		AG		See M050 ABS CONTROL UNIT	4
