EARTHS - COMPONENT LOCATION

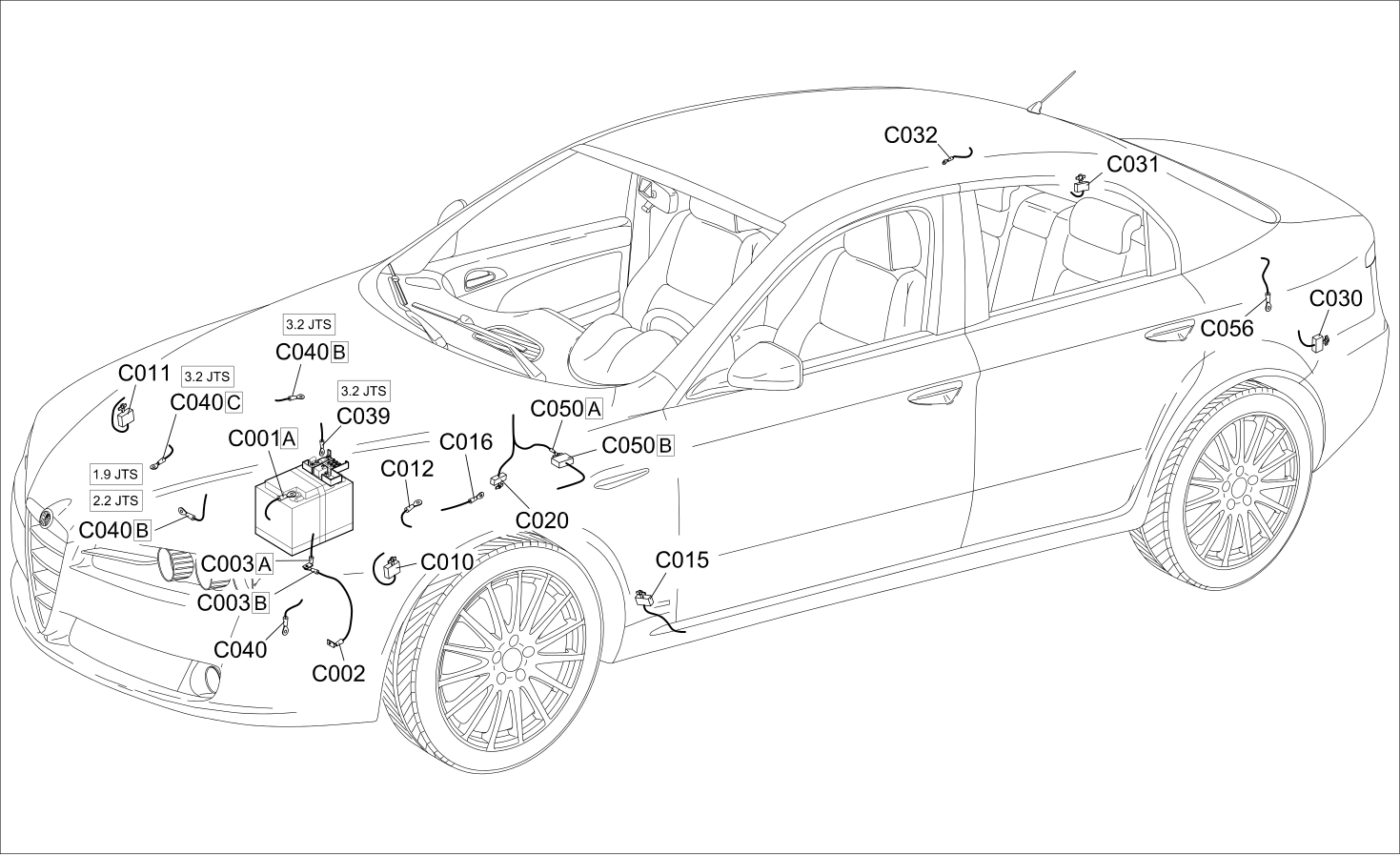

from 01/06

COMPONENT LOCATION

Component code	Description	Reference to the operation
C001	BATTERY EARTH
C002	BATTERY EARTH ON ENGINE	Op. 5530B22 BATTERY EARTH LEAD - R+R
C003	BATTERY EARTH ON BODYSHELL	Op. 5530B22 BATTERY EARTH LEAD - R+R
C010	LEFT FRONT EARTH
C011	RIGHT FRONT EARTH
C012	ABS FRONT EARTH
C015	DASHBOARD EARTH, DRIVER'S SIDE
C016	AIR CONDITIONING UNIT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
C032	REARSCREEN EARTH
C039	COMPRESSOR EARTH
C040	ENGINE EARTH
C050	AIR BAG SYSTEM EARTH
C056	AMPLIFIER EARTH

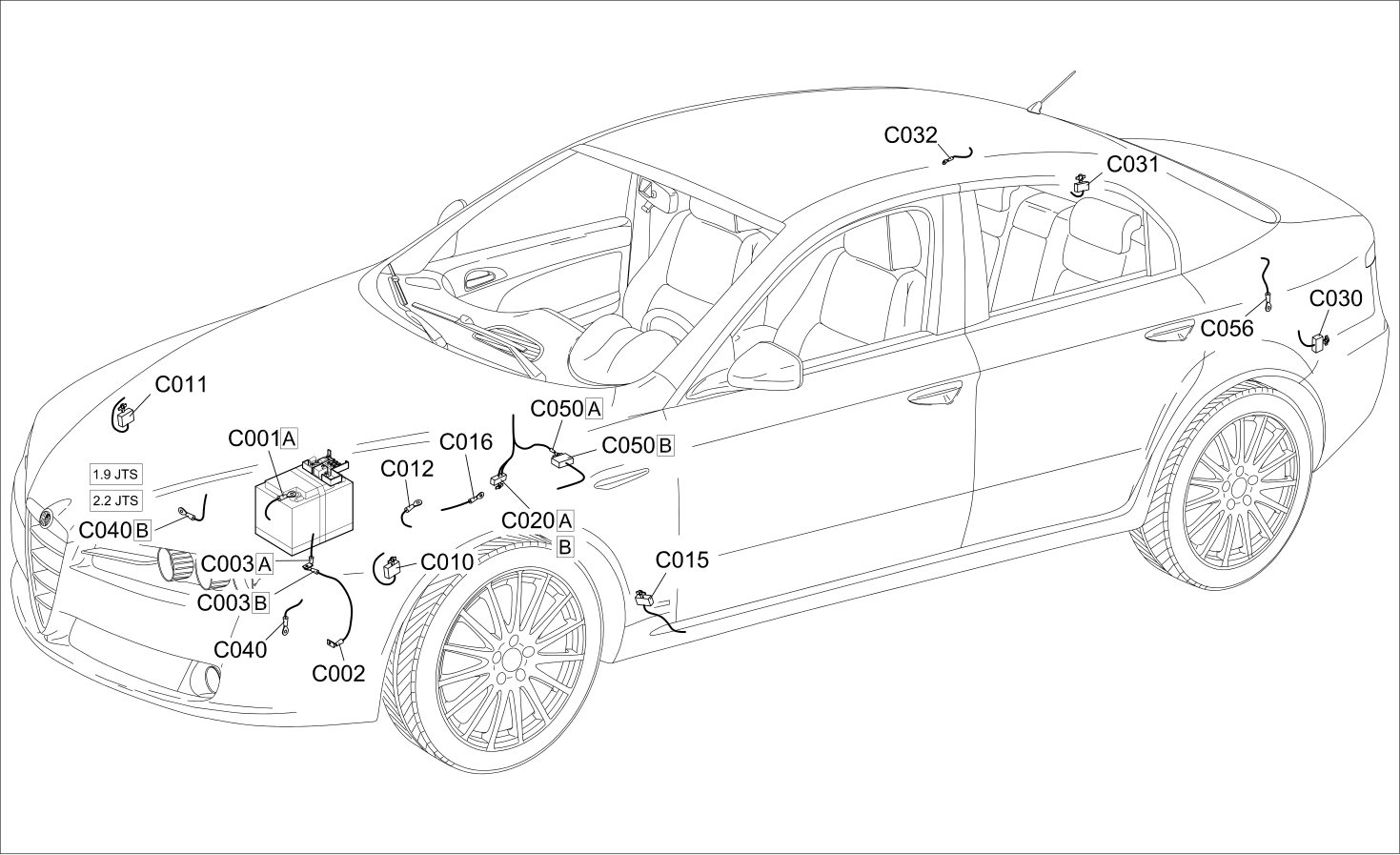

1.9 JTS, 2.2 JTS, 3.2 JTS, 1.9 JTD 8V, 1.9 JTD 16V, 2.4 JTD 20V · up to 12/05

COMPONENT LOCATION

Component code	Description	Reference to the operation
C001	BATTERY EARTH
C002	BATTERY EARTH ON ENGINE	Op. 5530B22 BATTERY EARTH LEAD - R+R
C003	BATTERY EARTH ON BODYSHELL	Op. 5530B22 BATTERY EARTH LEAD - R+R
C010	LEFT FRONT EARTH
C011	RIGHT FRONT EARTH
C012	ABS FRONT EARTH
C015	DASHBOARD EARTH, DRIVER'S SIDE
C016	AIR CONDITIONING UNIT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
C032	REARSCREEN EARTH
C040	ENGINE EARTH
C050	AIR BAG SYSTEM EARTH
C056	AMPLIFIER EARTH
