C010 left front earth

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Earths › C010 left front earth

Connectors and pin-outsC010 left front earth

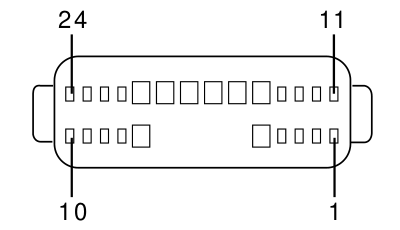

C010 LEFT FRONT EARTH

1.9 JTD 8V, 1.9 JTD 16V, 2.4 JTD 20V · Automatic transmission

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		See F010 LEFT HEADLAMP	14
2		N		See F010 LEFT HEADLAMP	8
3		N		See F020 LEFT SIDE REPEATER	2
4	1,0	N		See D013A FRONT/BUMPER COUPLING (FRONT)	1
6	1.5	N		See N025 HEADLAMP WASHER PUMP MOTOR	2
9		N		See P090 ALARM SIREN	3
10		NZ		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	2
12		NZ		See K027 WINDSCREEN WASHER FLUID LEVEL SENSOR	2
13		N		See K074 SLEWING SENSOR (VDC)	6
14		N		See K058 STEERING SENSOR	6
15	2.5	N		See H005A STEERING COLUMN SWITCH UNIT (FRONT)	7
16	2.5	N		See N015 WINDSCREEN WIPER MOTOR	4
17	1,0	NZ		See D004A FRONT/ENGINE COUPLING (FRONT)	1
18	1.5	N		See P005 SINGLE-TONE HORN	1
19	1.5	N		See P056 HEATED WINDSCREEN	B
20		NZ		See I010 BONNET RELEASE SWITCH	2
21	1,5	N		See M055A AUTOMATIC TRANSMISSION CONTROL UNIT (FRONT)	9
23	1.5	N		See F010 LEFT HEADLAMP	13

from 01/06

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		See F010 LEFT HEADLAMP	14
2		N		See F010 LEFT HEADLAMP	8
3		N		See F020 LEFT SIDE REPEATER	2
4	1,0	N		See D013A FRONT/BUMPER COUPLING (FRONT)	1
6	1.5	N		See N025 HEADLAMP WASHER PUMP MOTOR	2
9		N		See P090 ALARM SIREN	3
10		NZ		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	2
11		N		See B001C JUNCTION UNIT (FRONT)	29
12		NZ		See K027 WINDSCREEN WASHER FLUID LEVEL SENSOR	2
13		N		See K074 SLEWING SENSOR (VDC)	6
14		N		See K058 STEERING SENSOR	6
15	2.5	N		See H005A STEERING COLUMN SWITCH UNIT (FRONT)	7
16	2.5	N		See N015 WINDSCREEN WIPER MOTOR	4
17	1,0	N		See D004A FRONT/ENGINE COUPLING (FRONT)	6
18	1.5	N		See P005 SINGLE-TONE HORN	1
19	1.5	N		See P056 HEATED WINDSCREEN	B
20		NZ		See I010 BONNET RELEASE SWITCH	2
23	1.5	N		See F010 LEFT HEADLAMP	13
24		N		See I031 CLUTCH PEDAL SWITCH	4

up to 12/05

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		See F010 LEFT HEADLAMP	14
2		N		See F010 LEFT HEADLAMP	8
3		N		See F020 LEFT SIDE REPEATER	2
4	1	N		See D013A FRONT/BUMPER COUPLING (FRONT)	1
6	1.5	N		See N025 HEADLAMP WASHER PUMP MOTOR	2
9		N		See P090 ALARM SIREN	3
10		NZ		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	2
12		NZ		See K027 WINDSCREEN WASHER FLUID LEVEL SENSOR	2
13		N		See K074 SLEWING SENSOR (VDC)	6
14		N		See K058 STEERING SENSOR	6
15	2.5	N		See H005A STEERING COLUMN SWITCH UNIT (FRONT)	7
16	2.5	N		See N015 WINDSCREEN WIPER MOTOR	4
17	1	NZ		See D004A FRONT/ENGINE COUPLING (FRONT)	1
18	1.5	N		See P005 SINGLE-TONE HORN	1
19	1.5	N		See P056 HEATED WINDSCREEN	B
20		NZ		See I010 BONNET RELEASE SWITCH	2
23	1.5	N		See F010 LEFT HEADLAMP	13
24		N		See I031 CLUTCH PEDAL SWITCH	4
