Connectors and pin-outsQ030 driver's side bag

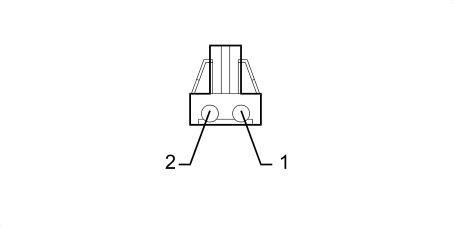

Q030 DRIVER'S SIDE BAG
Q030A – Left seat
| Wiring | Colour |
|---|---|
| See 36 LEFT SEAT | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | CN | See D070A DRIVER'S SEAT COUPLING (REAR) | 7 | ||
| 2 | AG | See D070A DRIVER'S SEAT COUPLING (REAR) | 8 | ||
Q030B – Left seat
| Wiring | Colour |
|---|---|
| See 36 LEFT SEAT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| N | See D070A DRIVER'S SEAT COUPLING (REAR) | 5 | |||
