D068 hi-fi system coupling
- Make
- Alfa Romeo
- Model
- 159 Factory Service Manual
- Year
- 2005–2011
- Section
- Intermediate couplings › D068 hi-fi system coupling
Connectors and pin-outsD068 hi-fi system coupling
D068 HI-FI SYSTEM COUPLING

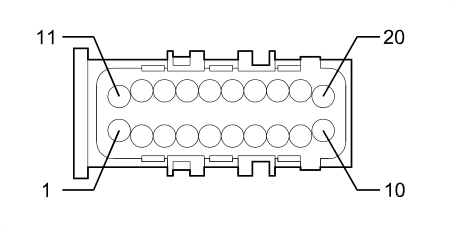

D068A – Hi fi system bridge
| Wiring | Colour |
|---|---|
| See 59 HI FI SYSTEM BRIDGE | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | LR | See P070 RADIO HI-FI AMPLIFIER | 9 | ||
| 2 | HL | See P070 RADIO HI-FI AMPLIFIER | 21 | ||
| 3 | AN | See P070 RADIO HI-FI AMPLIFIER | 7 | ||
| 4 | BN | See P070 RADIO HI-FI AMPLIFIER | 19 | ||
| 5 | NZ | See P070 RADIO HI-FI AMPLIFIER | 8 | ||
| 6 | BZ | See P070 RADIO HI-FI AMPLIFIER | 20 | ||
| 7 | AR | See P070 RADIO HI-FI AMPLIFIER | 10 | ||
| 8 | HN | See P070 RADIO HI-FI AMPLIFIER | 22 | ||
| 9 | 1 | RN | See P070 RADIO HI-FI AMPLIFIER | 3 | |
| 10 | 1 | BN | See P070 RADIO HI-FI AMPLIFIER | 15 | |
| 11 | 1,5 | Z | See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 11 | |
| 12 | 1,5 | CA | See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 12 | |
| 13 | 1,5 | V | See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 13 | |
| 14 | 1,5 | S | See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 14 | |
| 15 | M | See P070 RADIO HI-FI AMPLIFIER | 6 | ||
| 16 | 1 | BN | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 17 | |
| 17 | 1 | BN | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 16 | |

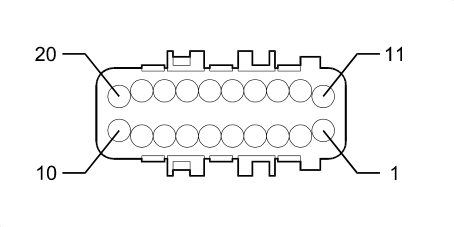

D068A – Dashboard
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1.5 | VN | See P020B RADIO (DASHBOARD) | 8 | |
| 2 | 1.5 | R | See P020B RADIO (DASHBOARD) | 7 | |
| 3 | 1.5 | A | See P020B RADIO (DASHBOARD) | 6 | |
| 4 | 1.5 | AN | See P020B RADIO (DASHBOARD) | 5 | |
| 5 | 1.5 | C | See P020B RADIO (DASHBOARD) | 4 | |
| 6 | 1.5 | CB | See P020B RADIO (DASHBOARD) | 3 | |
| 7 | 1.5 | H | See P020B RADIO (DASHBOARD) | 2 | |
| 8 | 1.5 | HN | See P020B RADIO (DASHBOARD) | 1 | |
| 9 | 1 | RN | See P032 CENTRE FRONT SPEAKER | 1 | |
| 10 | 1 | BN | See P032 CENTRE FRONT SPEAKER | 2 | |
| 11 | 1 | BL | See P045 DRIVER'S FRONT TWEETER SPEAKER | 2 | |
| 12 | 1 | BG | See P045 DRIVER'S FRONT TWEETER SPEAKER | 3 | |
| 13 | 1 | BM | See P046 PASSENGER FRONT TWEETER SPEAKER | 2 | |
| 14 | 1 | BN | See P046 PASSENGER FRONT TWEETER SPEAKER | 3 | |
| 15 | M | See P020C RADIO (DASHBOARD) | 6 | ||
| 16 | 1 | BN | See P020A RADIO (DASHBOARD) | 2 | |
| 17 | 1 | BN | X | See D001 FRONT/DASHBOARD COUPLING | 37 |
| See P020A RADIO (DASHBOARD) | 7 | ||||
| See D020A DASHBOARD/REAR COUPLING (DASHBOARD) | 37 | ||||
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1.5 | VN | See P020B RADIO (DASHBOARD) | 8 | |
| 2 | 1.5 | R | See P020B RADIO (DASHBOARD) | 7 | |
| 3 | 1.5 | A | See P020B RADIO (DASHBOARD) | 6 | |
| 4 | 1.5 | AN | See P020B RADIO (DASHBOARD) | 5 | |
| 5 | 1.5 | C | See P020B RADIO (DASHBOARD) | 4 | |
| 6 | 1.5 | CB | See P020B RADIO (DASHBOARD) | 3 | |
| 7 | 1.5 | H | See P020B RADIO (DASHBOARD) | 2 | |
| 8 | 1.5 | HN | See P020B RADIO (DASHBOARD) | 1 | |
| 9 | 1 | RN | See P032 CENTRE FRONT SPEAKER | 1 | |
| 10 | 1 | BN | See P032 CENTRE FRONT SPEAKER | 2 | |
| 11 | 1 | BL | See P045 DRIVER'S FRONT TWEETER SPEAKER | 2 | |
| 12 | 1 | BG | See P045 DRIVER'S FRONT TWEETER SPEAKER | 3 | |
| 13 | 1 | BM | See P046 PASSENGER FRONT TWEETER SPEAKER | 2 | |
| 14 | 1 | BN | See P046 PASSENGER FRONT TWEETER SPEAKER | 3 | |
| 15 | M | See P020C RADIO (DASHBOARD) | 6 | ||
| 16 | 1 | BN | See P020A RADIO (DASHBOARD) | 2 | |
| 17 | 1 | BN | X | See D001 FRONT/DASHBOARD COUPLING | 37 |
| See P020A RADIO (DASHBOARD) | 4 | ||||
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1.5 | VN | See P020B RADIO (DASHBOARD) | 8 | |
| 2 | 1.5 | R | See P020B RADIO (DASHBOARD) | 7 | |
| 3 | 1.5 | A | See P020B RADIO (DASHBOARD) | 6 | |
| 4 | 1.5 | AN | See P020B RADIO (DASHBOARD) | 5 | |
| 5 | 1.5 | C | See P020B RADIO (DASHBOARD) | 4 | |
| 6 | 1.5 | CB | See P020B RADIO (DASHBOARD) | 3 | |
| 7 | 1.5 | H | See P020B RADIO (DASHBOARD) | 2 | |
| 8 | 1.5 | HN | See P020B RADIO (DASHBOARD) | 1 | |
| 9 | 1 | RN | See P032 CENTRE FRONT SPEAKER | 1 | |
| 10 | 1 | BN | See P032 CENTRE FRONT SPEAKER | 2 | |
| 11 | 1 | BL | See P045 DRIVER'S FRONT TWEETER SPEAKER | 3 | |
| 12 | 1 | BG | See P045 DRIVER'S FRONT TWEETER SPEAKER | 2 | |
| 13 | 1 | BM | See P046 PASSENGER FRONT TWEETER SPEAKER | 3 | |
| 14 | 1 | BN | See P046 PASSENGER FRONT TWEETER SPEAKER | 2 | |
| 15 | M | See P020A RADIO (DASHBOARD) | 5 | ||
D068B – Hi fi system bridge
| Wiring | Colour |
|---|---|
| See 59 HI FI SYSTEM BRIDGE | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1.5 | VN | See P070 RADIO HI-FI AMPLIFIER | 4 | |
| 2 | 1.5 | R | See P070 RADIO HI-FI AMPLIFIER | 16 | |
| 3 | 1.5 | A | See P070 RADIO HI-FI AMPLIFIER | 32 | |
| 4 | 1.5 | AN | See P070 RADIO HI-FI AMPLIFIER | 31 | |
| 5 | 1.5 | C | See P070 RADIO HI-FI AMPLIFIER | 26 | |
| 6 | 1.5 | CB | See P070 RADIO HI-FI AMPLIFIER | 27 | |
| 7 | 1.5 | H | See P070 RADIO HI-FI AMPLIFIER | 17 | |
| 8 | 1.5 | HN | See P070 RADIO HI-FI AMPLIFIER | 5 | |
| 11 | 1,5 | Z | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 11 | |
| 12 | 1,5 | CA | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 12 | |
| 13 | 1,5 | V | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 13 | |
| 14 | 1,5 | S | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 14 | |
| 18 | SCH | See P070 RADIO HI-FI AMPLIFIER | 30 | ||
| 19 | LN | See P070 RADIO HI-FI AMPLIFIER | 29 | ||
D068B – Rear
| Wiring | Colour |
|---|---|
| See 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1.5 | VN | See D035 LEFT REAR DOOR COUPLING | B6 | |
| 2 | 1.5 | R | See D035 LEFT REAR DOOR COUPLING | B7 | |
| 3 | 1.5 | A | X | See D030 DRIVER'S FRONT DOOR COUPLING | 21 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 11 | ||||
| 4 | 1.5 | AN | X | See D030 DRIVER'S FRONT DOOR COUPLING | 22 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 12 | ||||
| 5 | 1.5 | C | X | See D031 PASSENGER FRONT DOOR COUPLING | 21 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 13 | ||||
| 6 | 1.5 | CB | X | See D031 PASSENGER FRONT DOOR COUPLING | 22 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 14 | ||||
| 7 | 1.5 | H | See D036 RIGHT REAR DOOR COUPLING | B6 | |
| 8 | 1.5 | HN | See D036 RIGHT REAR DOOR COUPLING | B7 | |
| 11 | 1.5 | A | X | See D030 DRIVER'S FRONT DOOR COUPLING | 21 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 3 | ||||
| 12 | 1.5 | AN | X | See D030 DRIVER'S FRONT DOOR COUPLING | 22 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 4 | ||||
| 13 | 1.5 | C | X | See D031 PASSENGER FRONT DOOR COUPLING | 21 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 5 | ||||
| 14 | 1.5 | CB | X | See D031 PASSENGER FRONT DOOR COUPLING | 22 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 6 | ||||
| 18 | SCH | See G010E FRONT COURTESY LIGHT (REAR) | B | ||
| 19 | LN | See G010E FRONT COURTESY LIGHT (REAR) | A | ||
| Wiring | Colour |
|---|---|
| See 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1.5 | VN | See D035 LEFT REAR DOOR COUPLING | B6 | |
| 2 | 1.5 | R | See D035 LEFT REAR DOOR COUPLING | B7 | |
| 3 | 1.5 | A | X | See D031 PASSENGER FRONT DOOR COUPLING | 21 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 11 | ||||
| 4 | 1.5 | AN | X | See D031 PASSENGER FRONT DOOR COUPLING | 22 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 12 | ||||
| 5 | 1.5 | C | X | See D030 DRIVER'S FRONT DOOR COUPLING | 21 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 13 | ||||
| 6 | 1.5 | CB | X | See D030 DRIVER'S FRONT DOOR COUPLING | 22 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 14 | ||||
| 7 | 1.5 | H | See D036 RIGHT REAR DOOR COUPLING | B6 | |
| 8 | 1.5 | HN | See D036 RIGHT REAR DOOR COUPLING | B7 | |
| 11 | 1.5 | A | X | See D031 PASSENGER FRONT DOOR COUPLING | 21 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 3 | ||||
| 12 | 1.5 | AN | X | See D031 PASSENGER FRONT DOOR COUPLING | 22 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 4 | ||||
| 13 | 1.5 | C | X | See D030 DRIVER'S FRONT DOOR COUPLING | 21 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 5 | ||||
| 14 | 1.5 | CB | X | See D030 DRIVER'S FRONT DOOR COUPLING | 22 |
| See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 6 | ||||
| 18 | SCH | See G010E FRONT COURTESY LIGHT (REAR) | B | ||
| 19 | LN | See G010E FRONT COURTESY LIGHT (REAR) | A | ||

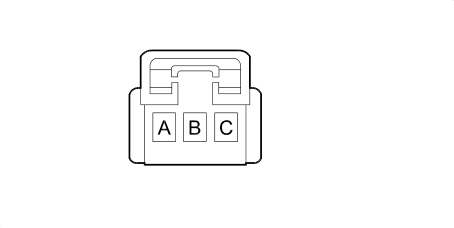

D068C – Hi fi system bridge
| Wiring | Colour |
|---|---|
| See 59 HI FI SYSTEM BRIDGE | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| A | 4 | R | See P070 RADIO HI-FI AMPLIFIER | 1 | |
| B | 1,5 | B | See P049 REAR CENTRE WOOFER SPEAKER | 6 | |
| Wiring | Colour |
|---|---|
| See 59 HI FI SYSTEM BRIDGE | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| A | 4 | R | See P070 RADIO HI-FI AMPLIFIER | 1 | |
| B | 1,5 | B | See P049 REAR CENTRE WOOFER SPEAKER | 5 | |

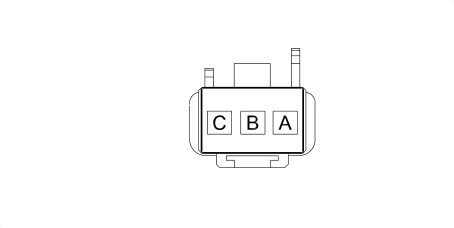

D068C – Rear
| Wiring | Colour |
|---|---|
| See 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| A | 4 | R | See B045A LUGGAGE COMPARTMENT JUNCTION UNIT (CVB) (REAR) | 1 | |
| B | 1.5 | B | See B045A LUGGAGE COMPARTMENT JUNCTION UNIT (CVB) (REAR) | 7 | |
