P049 rear centre woofer speaker

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Various consumers › P049 rear centre woofer speaker

Connectors and pin-outsP049 rear centre woofer speaker

P049 REAR CENTRE WOOFER SPEAKER

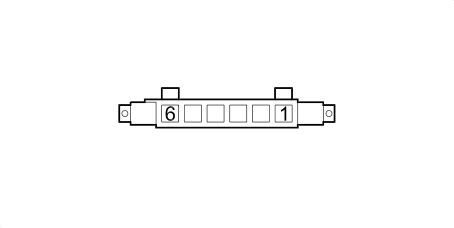

BOSE System, Station Wagon

Wiring	Colour
See 59 HI FI SYSTEM BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	1,5	V		See P070 RADIO HI-FI AMPLIFIER	11
3	1.5	BV		See P070 RADIO HI-FI AMPLIFIER	12
4	1.5	S		See P070 RADIO HI-FI AMPLIFIER	25
5	1,5	N		See C056 AMPLIFIER EARTH
6	1,5	B		See D068C HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	B

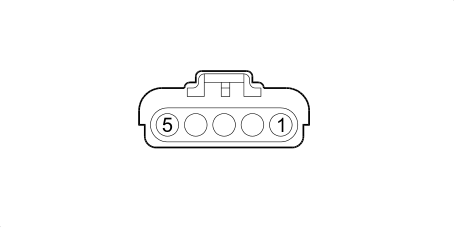

BOSE System

Wiring	Colour
See 59 HI FI SYSTEM BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	V		See P070 RADIO HI-FI AMPLIFIER	11
2	1.5	BV		See P070 RADIO HI-FI AMPLIFIER	12
3	1.5	S		See P070 RADIO HI-FI AMPLIFIER	25
4	1,5	N		See C056 AMPLIFIER EARTH
5	1,5	B		See D068C HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	B
