D047 clock spring coupling

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Intermediate couplings › D047 clock spring coupling

Connectors and pin-outsD047 clock spring coupling

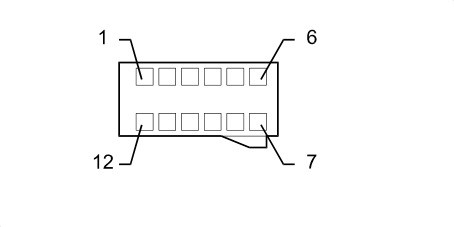

D047 CLOCK SPRING COUPLING

from 01/06

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		MV		See D001 FRONT/DASHBOARD COUPLING	17
3		NS	X	See M001H BODY COMPUTER (DASHBOARD)	24
				See M089 STEERING LOCK CONTROL UNIT (NBS)	A3
				See H003 IGNITION DEVICE	3
				See P020A RADIO (DASHBOARD)	1
				See M060A AIR BAG CONTROL UNIT (DASHBOARD)	8
				See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	10
				See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	5
4		BS	X	See M001H BODY COMPUTER (DASHBOARD)	25
				See M089 STEERING LOCK CONTROL UNIT (NBS)	A2
				See H003 IGNITION DEVICE	8
				See P020A RADIO (DASHBOARD)	3
				See M060A AIR BAG CONTROL UNIT (DASHBOARD)	7
				See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	11
				See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	4
5		AB	X	See H002 STARTING PUSH BUTTON	1
				See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	3
				See P020A RADIO (DASHBOARD)	4
				See D075 RADIO PHONE COUPLING	7
6		NZ		See C020 PASSENGER SIDE DASHBOARD EARTH	15
7		M		See D001 FRONT/DASHBOARD COUPLING	9
8		AG		See D001 FRONT/DASHBOARD COUPLING	21
9		SN		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	19
10		RG		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	20
11		MN		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	16
12		MG		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	15

up to 12/05

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		MV		See D001 FRONT/DASHBOARD COUPLING	17
3		NS	X	See M001H BODY COMPUTER (DASHBOARD)	24
				See M089 STEERING LOCK CONTROL UNIT (NBS)	A3
				See H003 IGNITION DEVICE	3
				See P020A RADIO (DASHBOARD)	1
				See M060A AIR BAG CONTROL UNIT (DASHBOARD)	8
				See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	10
				See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	5
4		BS	X	See M001H BODY COMPUTER (DASHBOARD)	25
				See M089 STEERING LOCK CONTROL UNIT (NBS)	A2
				See H003 IGNITION DEVICE	8
				See P020A RADIO (DASHBOARD)	3
				See M060A AIR BAG CONTROL UNIT (DASHBOARD)	7
				See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	11
				See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	4
5		AB	X	See H002 STARTING PUSH BUTTON	1
				See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	3
				See P020A RADIO (DASHBOARD)	4
				See D075 RADIO PHONE COUPLING	7
6		NZ		See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)	8
9		SN		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	19
10		RG		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	20
11		MN		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	16
12		MG		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	15
