P070 radio hi-fi amplifier

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Various consumers › P070 radio hi-fi amplifier

Connectors and pin-outsP070 radio hi-fi amplifier

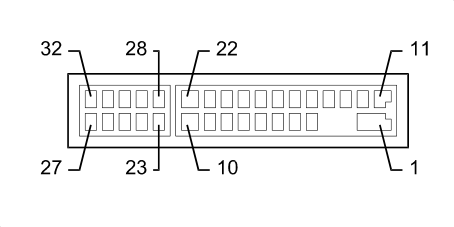

P070 RADIO HI-FI AMPLIFIER

BOSE System, Station Wagon

Wiring	Colour
See 59 HI FI SYSTEM BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4,0	R		See D068C HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	A
2	4,0	N		See C056 AMPLIFIER EARTH
3	1,0	RN		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	9
4	1.5	VN		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	1
5	1.5	HN		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	8
6		M		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	15
7		AN		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	3
8		NZ		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	5
9		LR		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	1
10		AR		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	7
11	1,5	V		See P049 REAR CENTRE WOOFER SPEAKER	2
12	1.5	BV		See P049 REAR CENTRE WOOFER SPEAKER	3
15	1,0	BN		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	10
16	1.5	R		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	2
17	1.5	H		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	7
19		BN		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	4
20		BZ		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	6
21		HL		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	2
22		HN		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	8
25	1.5	S		See P049 REAR CENTRE WOOFER SPEAKER	4
26	1.5	C		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	5
27	1.5	CB		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	6
29		LN		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	19
30		SCH		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	18
31	1.5	AN		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	4
32	1.5	A		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	3

BOSE System

Wiring	Colour
See 59 HI FI SYSTEM BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4,0	R		See D068C HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	A
2	4,0	N		See C056 AMPLIFIER EARTH
3	1,0	RN		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	9
4	1.5	VN		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	1
5	1.5	HN		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	8
6		M		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	15
7		AN		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	3
8		NZ		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	5
9		LR		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	1
10		AR		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	7
11	1,5	V		See P049 REAR CENTRE WOOFER SPEAKER	1
12	1.5	BV		See P049 REAR CENTRE WOOFER SPEAKER	2
15	1,0	BN		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	10
16	1.5	R		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	2
17	1.5	H		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	7
19		BN		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	4
20		BZ		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	6
21		HL		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	2
22		HN		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	8
25	1.5	S		See P049 REAR CENTRE WOOFER SPEAKER	3
26	1.5	C		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	5
27	1.5	CB		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	6
29		LN		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	19
30		SCH		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	18
31	1.5	AN		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	4
32	1.5	A		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	3
