FUEL TANK SENDER UNIT

88

INSTRUMENTS

NEW RANGE ROVER

4

REPAIR

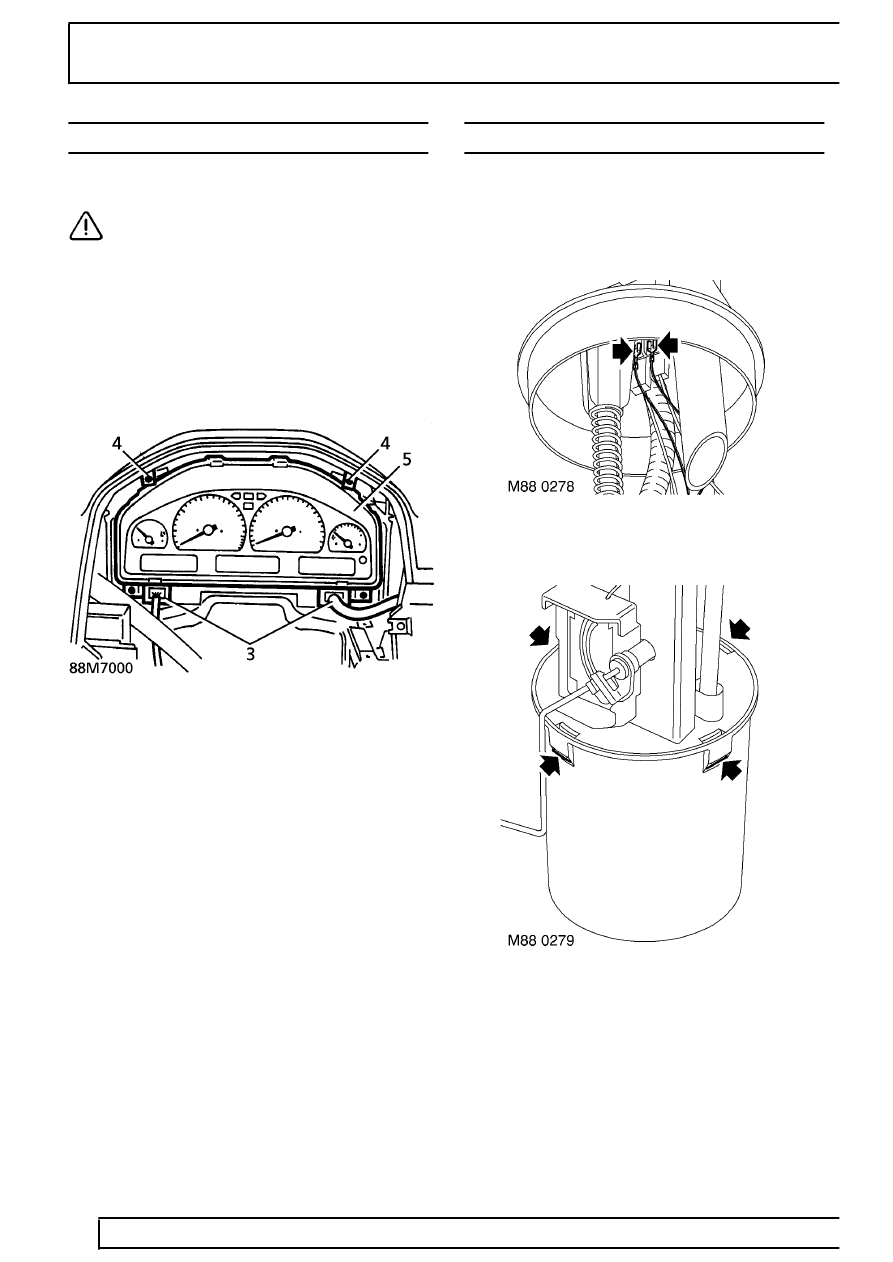

INSTRUMENT PACK

Service repair no - 88.20.01

CAUTION: If vehicle has SRS fitted, both
battery terminals must be disconnected
(negative lead first) prior to removing

instrument pack.

1. Adjust steering column to fully extended/lowered

position.

2. Remove instrument pack binnacle.

See this

section.

3. Disconnect instrument pack multiplugs.

4. Remove 4 screws securing instrument pack to

fascia.

5. Remove instrument pack.

Refit

6. Reverse removal procedure.

FUEL TANK SENDER UNIT

Service repair no - 88.25.32

Remove

1. Remove fuel tank.

See FUEL SYSTEM, Repair.

2. Disconnect 2 sender unit lucars. (1large 1 small

)difficult to disconnect.

3. Carefully release 4 clips around fuel pump

housing, lower housing disengage pump from
mounting.
