NAVIGATION SYSTEM COMPONENTS (87 - NAVIGATION SYSTEM) (page 5 of 9)
- Make
- Land Rover
- Model
- Range Rover P38
- Section
- DESCRIPTION AND OPERATION
87 - NAVIGATION SYSTEMNAVIGATION SYSTEM COMPONENTS · page 5 of 9
87
NAVIGATION SYSTEM
NEW RANGE ROVER
8
DESCRIPTION AND OPERATION

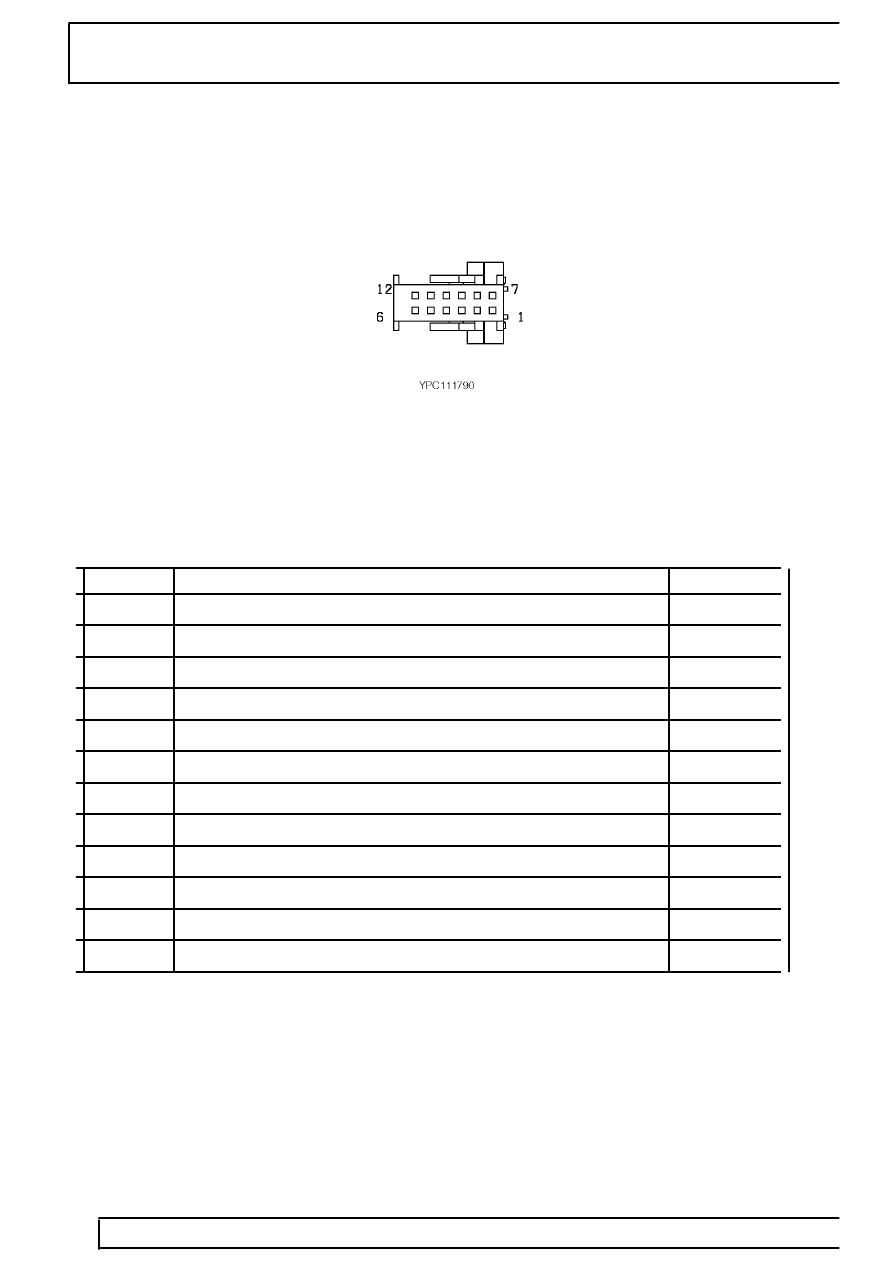

C959 - 12 way MQL - Black
Pin No.
Description
Input/Output
1
Ground
Input
2
RS422 from navigation computer
Input
3
RS422 from navigation computer - inverted
Input
4
RS422 to navigation computer - inverted
Output
5
RS422 to navigation computer
Output
6
Pulse per second to navigation computer
Output
7
+12V Accessory feed
Input
8
+12V Permanent
-
9
Not used
-
10
Not used
-
11
Not used
-
12
Not used
-
