NAVIGATION CONTROL DIAGRAM (87 - NAVIGATION SYSTEM)
- Make
- Land Rover
- Model
- Range Rover P38
- Section
- DESCRIPTION AND OPERATION › NAVIGATION CONTROL DIAGRAM
87 - NAVIGATION SYSTEMNAVIGATION CONTROL DIAGRAM · page 1 of 2
87
NAVIGATION SYSTEM
NEW RANGE ROVER
2
DESCRIPTION AND OPERATION

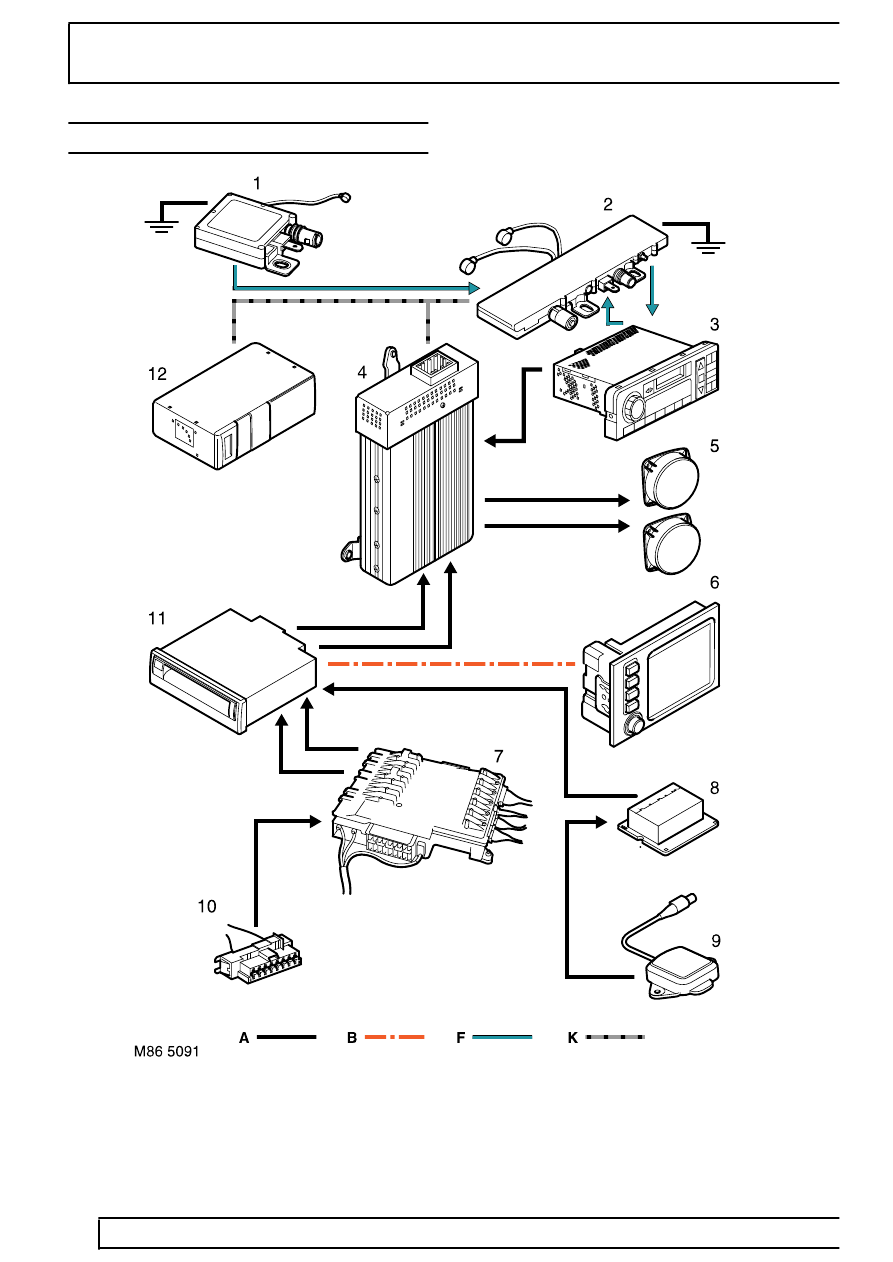

NAVIGATION SYSTEM CONTROL DIAGRAM
A=Hardwired connections; B=K Bus; F=RF Transmission; K=I Bus
