80 - HEATING AND VENTILATION (DESCRIPTION): DESCRIPTION AND OPERATION (page 4 of 6)
- Make
- Land Rover
- Model
- Range Rover P38
- Section
- DESCRIPTION AND OPERATION
80 - HEATING AND VENTILATIONDESCRIPTION · page 4 of 6
HEATING AND VENTILATION
5
DESCRIPTION AND OPERATION

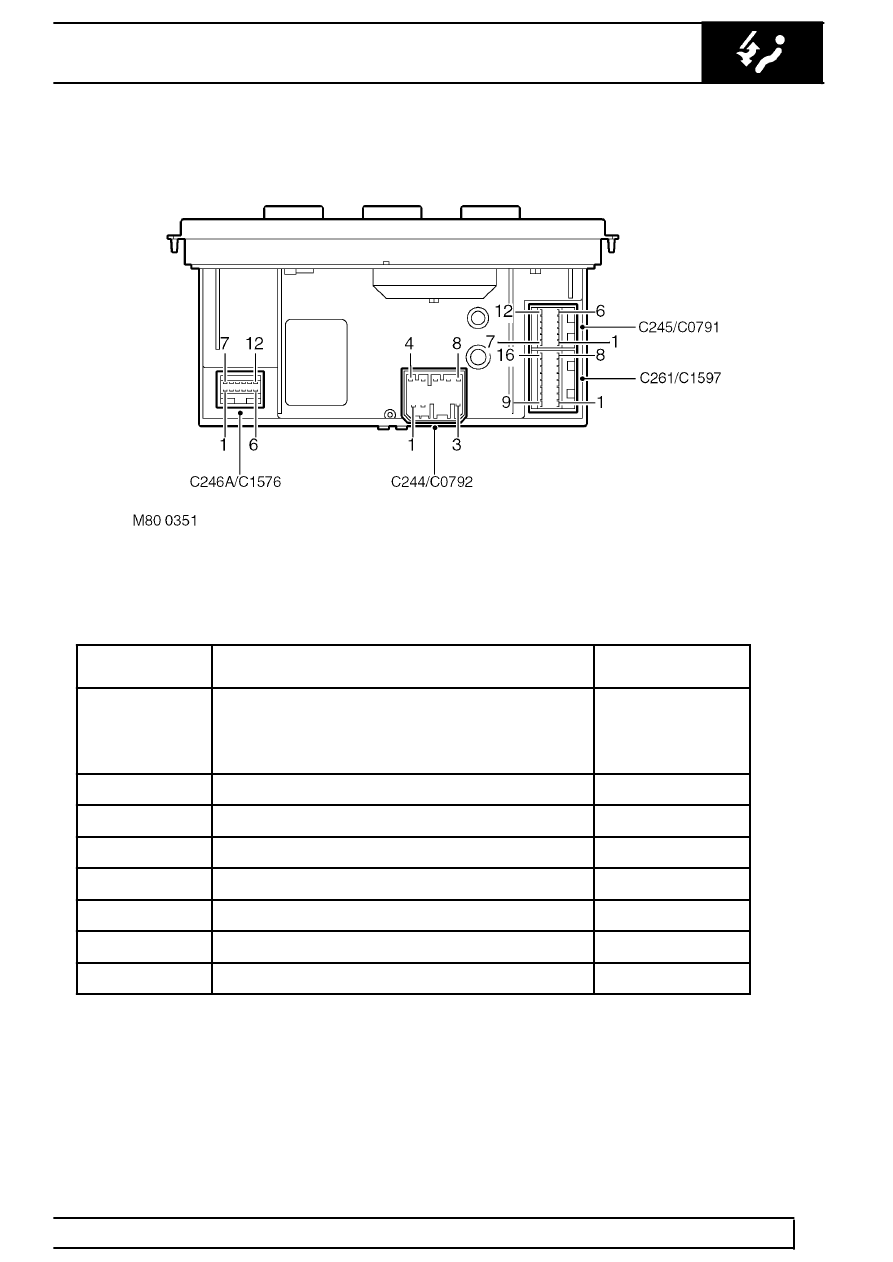

Heater ECU connectors
Heater ECU connector pin details
Connector/
Pin No.
Description
Input/Output
C244 (up to
99MY)
C0792 (from
99MY)
1
Auxiliary power supply
Input
2
Battery power supply
Input
3
Ignition power supply
Input
4
Earth
-
5
Windscreen heaters
Output
6
Instrument/ Switch illumination
Input
7 and 8
Not used
-
