60 - FRONT SUSPENSION - ELECTRONIC AIR SUSPENSIONLOCATION OF COMPONENTS
60
FRONT SUSPENSION
NEW RANGE ROVER
2
DESCRIPTION AND OPERATION
LOCATION OF COMPONENTS

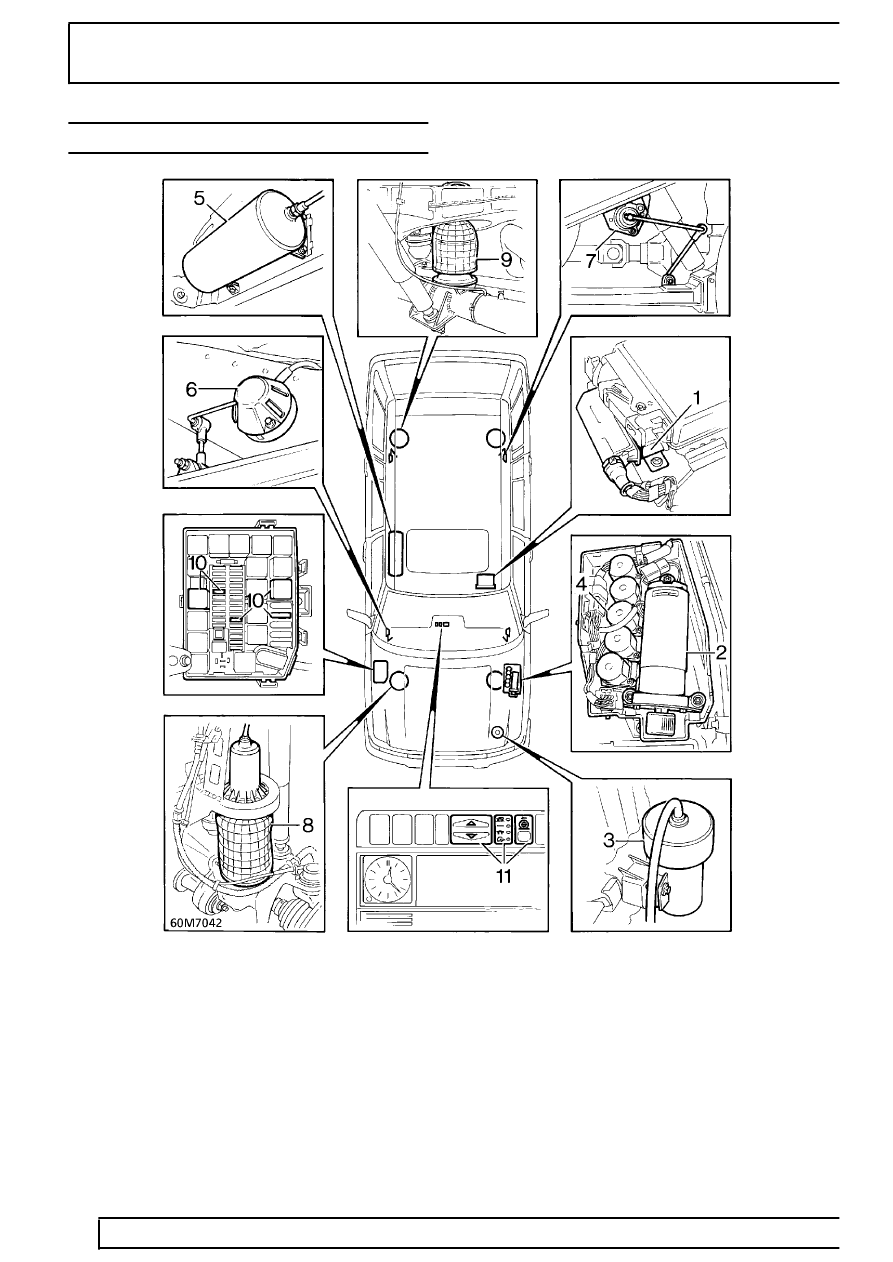

Key to location of components
1. Electrical control unit
2. Compressor
3. Air dryer
4. Valve block
5. Reservoir
6. Height sensors front
7. Height sensors rear
8. Front air spring
9. Rear air spring
10. Relays, fuses
11. Driver controls
