57 - STEERING (STEERING SYSTEM): DESCRIPTION AND OPERATION (page 2 of 2)
- Make
- Land Rover
- Model
- Range Rover P38
- Section
- DESCRIPTION AND OPERATION
57 - STEERINGSTEERING SYSTEM · page 2 of 2
57
STEERING
NEW RANGE ROVER
2
DESCRIPTION AND OPERATION

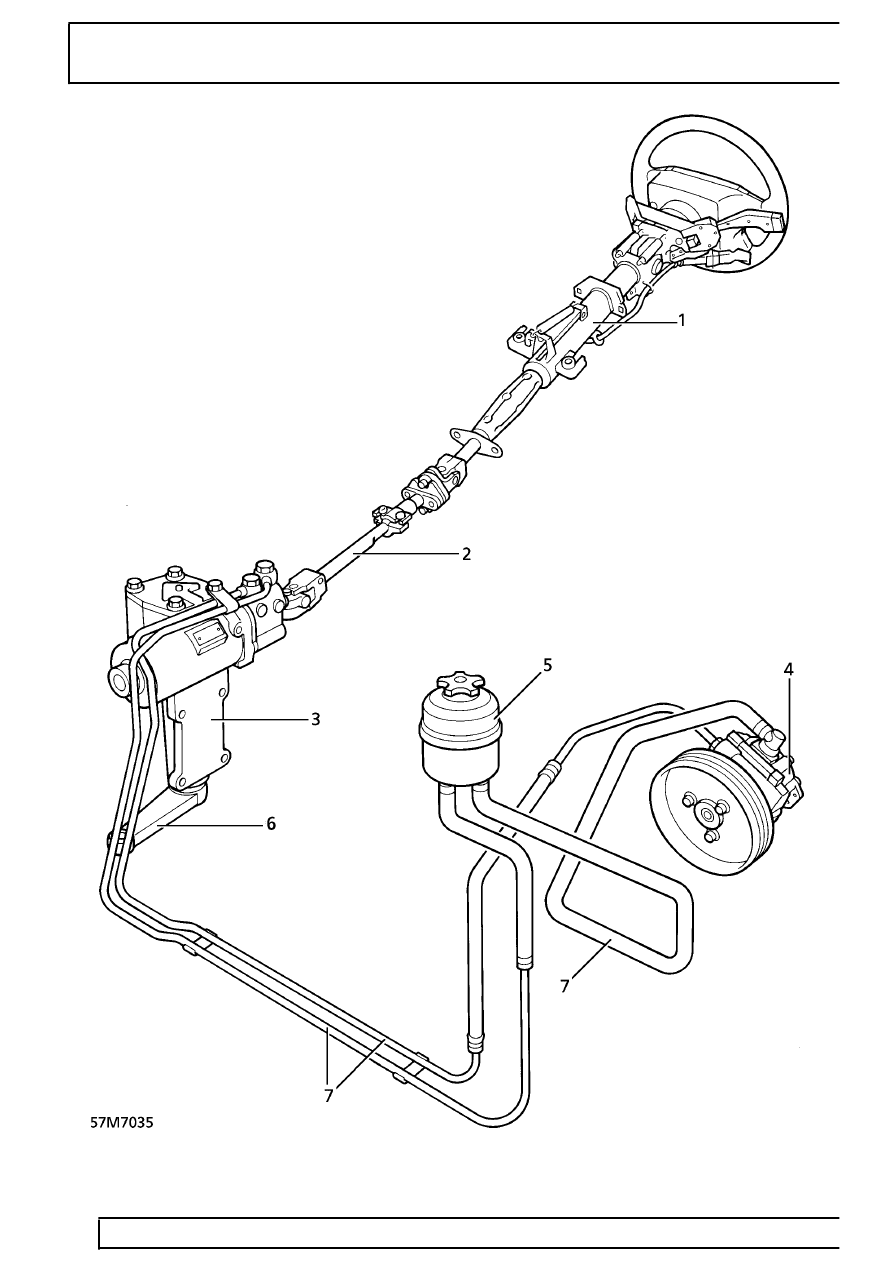

Power steering system
1. Steering column
2. Steering column intermediate shaft
3. Steering box
4. Hydraulic pump (pump for V8 up to 99MY shown - other pumps similar)
5. Oil reservoir
6. Drop arm
7. Hydraulic pipes
