CAMSHAFT COVER GASKET - NON EGR

12

ENGINE

NEW RANGE ROVER

2

REPAIR

CAMSHAFT COVER GASKET - NON EGR

Service repair no - 12.29.40

Remove

1. Disconnect battery negative lead.

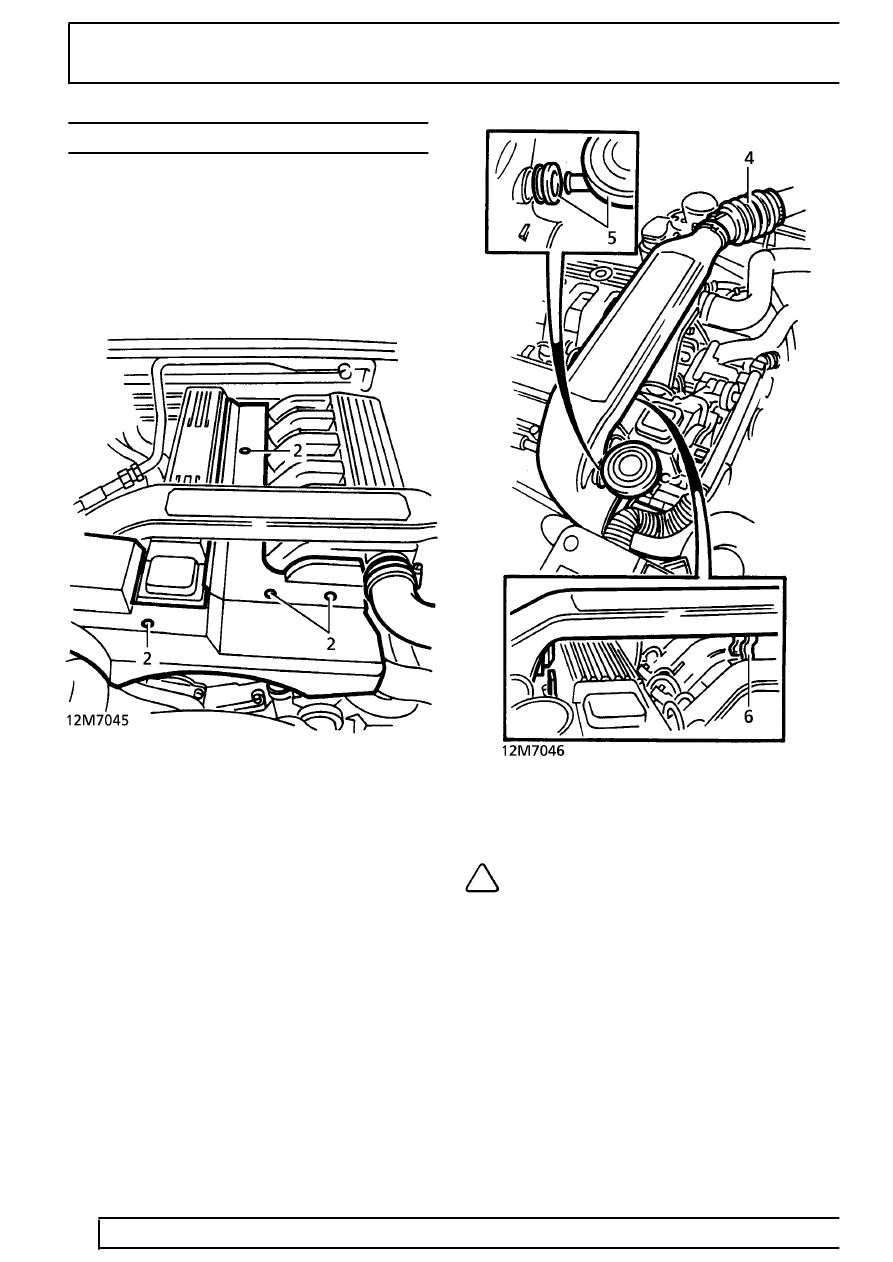

2. Remove 4 screws securing injector covers.

Remove covers.

3. Release intake hose from ducting.
4. Release turbocharger intake hose from ducting.

5. Release breather valve from intake ducting

grommet.

NOTE: Collect grommet. Refit to ducting.

6. Disengage 2 clips. Remove intake ducting.
7. Remove 3 bolts securing intake ducting bracket

and exhaust manifold heat shield to camshaft
cover. Collect bracket.
