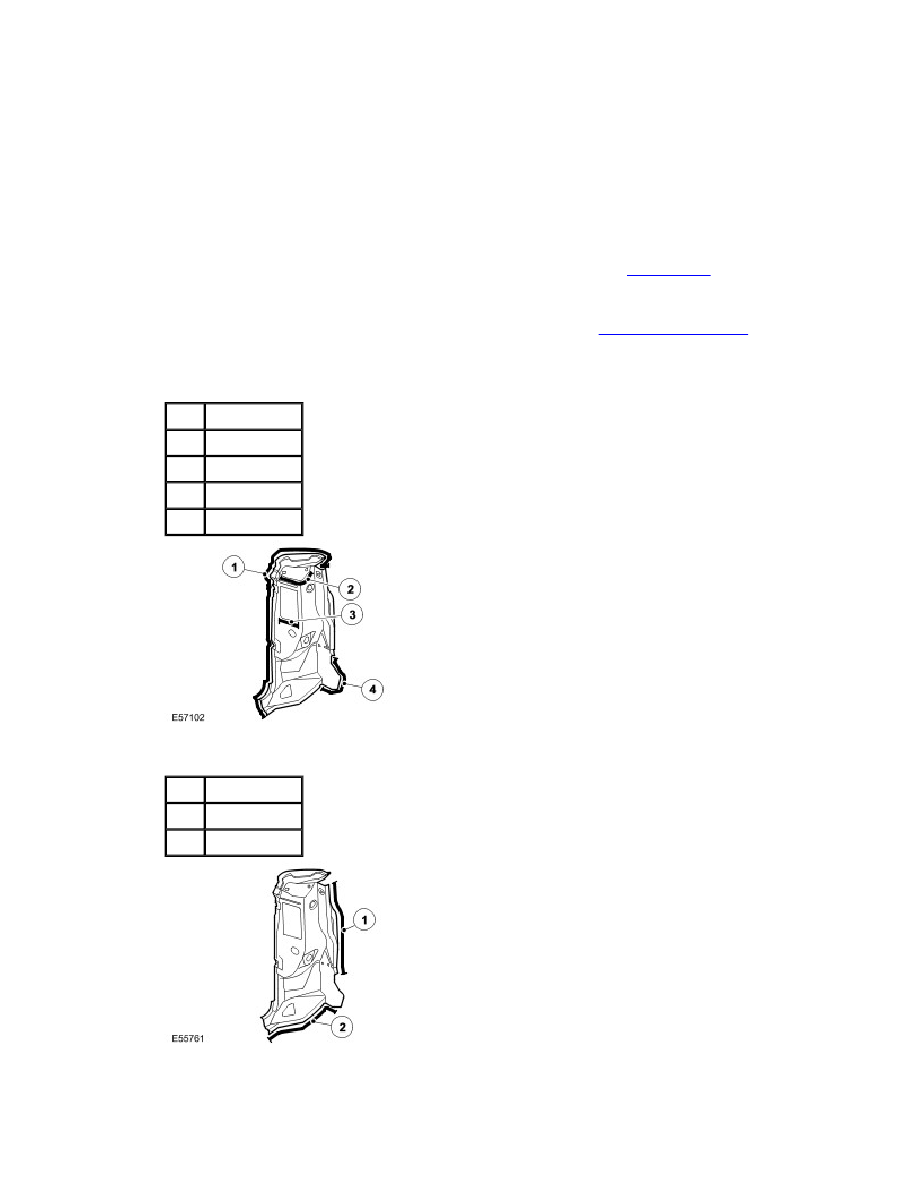

background image




Rear Lamp Mounting Panel (77.80.25)

Removal

NOTE :











Published : Sep 16, 2004



In this procedure, the rear lamp mounting panel is replaced in conjunction with the quarter panel.

1 .



Disconnect both battery cables. For additional information, refer to

Specifications

 (Section 414-00

Charging System - General Information)

2 .



Remove the quarter panel. For additional information, refer to

Quarter Panel (77.40.09)

 (Section

501-30 Rear End Sheet Metal Repairs)

3 .



Item

Description

1

18 plug welds.

2

Adhesive.

3

3 plug welds.

4

2 plug welds.

4 .



Item

Description

1

16 spot welds.

2

11 spot welds.

5 .

  For additional information:
