Second Row Safety Belt Retractor




Second Row Safety Belt Retractor (76.73.23)

Removal









Installation







Published : Apr 29, 2004

1 .



Remove the C-pillar upper trim panel. For additional information, refer to

C-Pillar Upper Trim Panel

(76.13.35)

 (Section 501-05)

2 .



Remove the C-pillar lower trim panel. For additional information, refer to

C-Pillar Lower Trim Panel

(76.13.34)

 (Section 501-05)

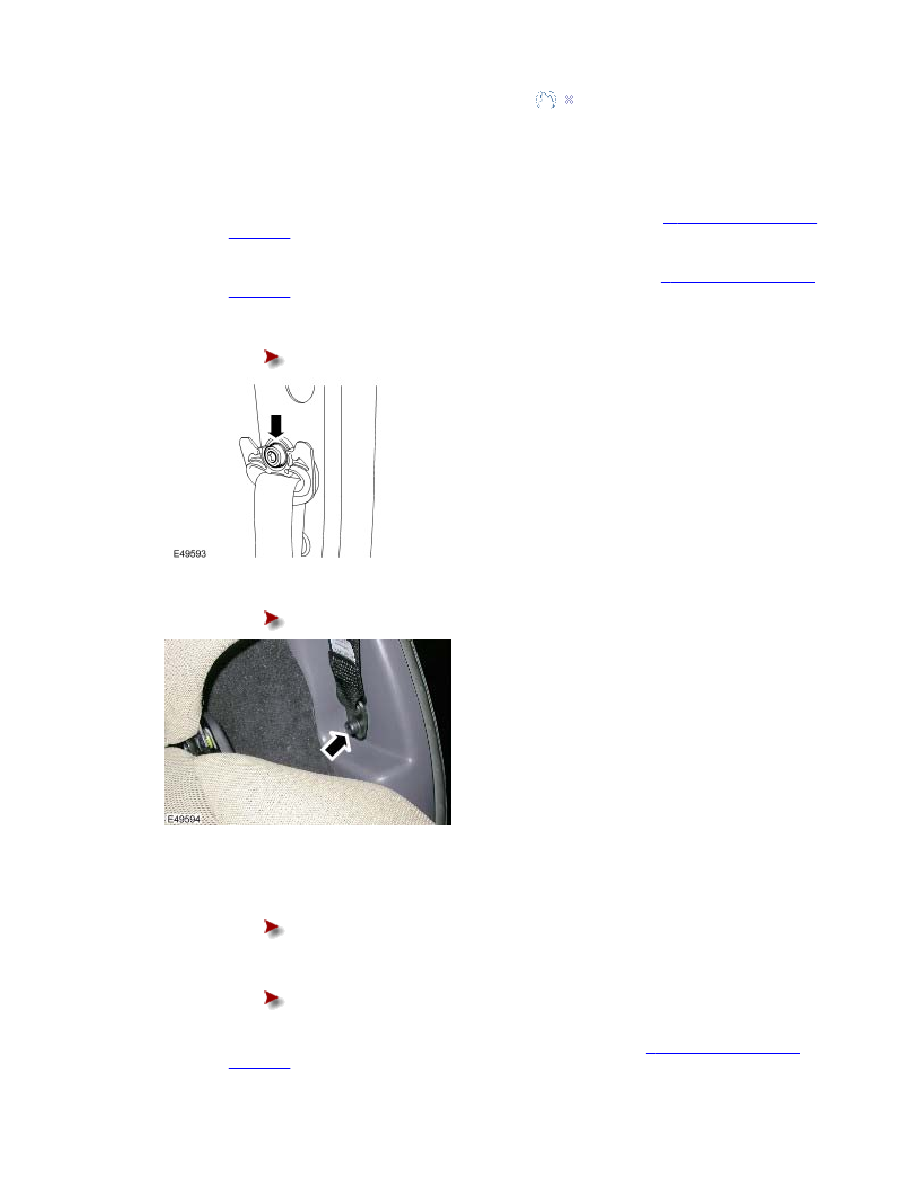

3 .

  Release the safety belt upper anchor.



Remove and discard the Torx bolt.

4 .

  Remove the second row safety belt retractor.



Remove and discard the Torx bolt.

1 .

  Install the second row safety belt retractor.



Tighten the Torx bolt to 40 Nm (30 lb.ft).

2 .

  Install the safety belt upper anchor.



Tighten the Torx bolt to 40 Nm (30 lb.ft).

3 .



Install the C-pillar lower trim panel. For additional information, refer to

C-Pillar Lower Trim Panel

(76.13.34)

 (Section 501-05)
