Once this sequence has been completed, the stored mirror position will be the position that the mirrors move to when
reverse gear is next selected.

Storing a memory position with reverse gear selected only affects reverse gear mirror positions, the remainder of the
memory position's remain unchanged.

To protect against an accidental setting, the mirror position will only be stored if a mirror adjustment has been made since
reverse gear was selected. If there is no reverse gear mirror position stored, then a default setting, stored in the memory
control module, is adopted.

There are three customer personalisation memory settings per key. For each of these settings there are 3 possible
reverse gear mirror position stores. This equates to a possible nine reverse gear mirror position settings. Personalisation
memory setting relates to the 3 most recent ignition keys.



The reverse gear mirror position feature can be activated or deactivated via the customer personalisation feature of the
high line instrument cluster. This provides the driver with the option to enable or disable reverse gear mirror position as
required. For additional information, refer to

Information and Message Center

 (413-08 Information and Message Center)

Information regarding the reverse gear mirror status, for both manual and automatic transmissions, is transmitted as a
message on the Local Interconnect Network (LIN) bus.

When the reverse gear mirror position feature is toggled 'OFF', all 3 memory settings associated with that personalisation
memory will return to the default reverse gear mirror settings.

NOTE :


When reverse gear is de-selected, the mirror position immediately prior to reverse selection will be resumed, unless a
memory recall has been requested whilst reverse has been selected, in which case the mirrors will move to the requested
memory position when reverse is de-selected.

On vehicles fitted with the ZF automatic transmission there is a delay of 0.5 second following the selection of reverse
gear, prior to the reverse mirror position being recalled. This is to prevent any movement of the mirrors as the gear
selector is moved through the reverse position on the way to, and from, the park position.


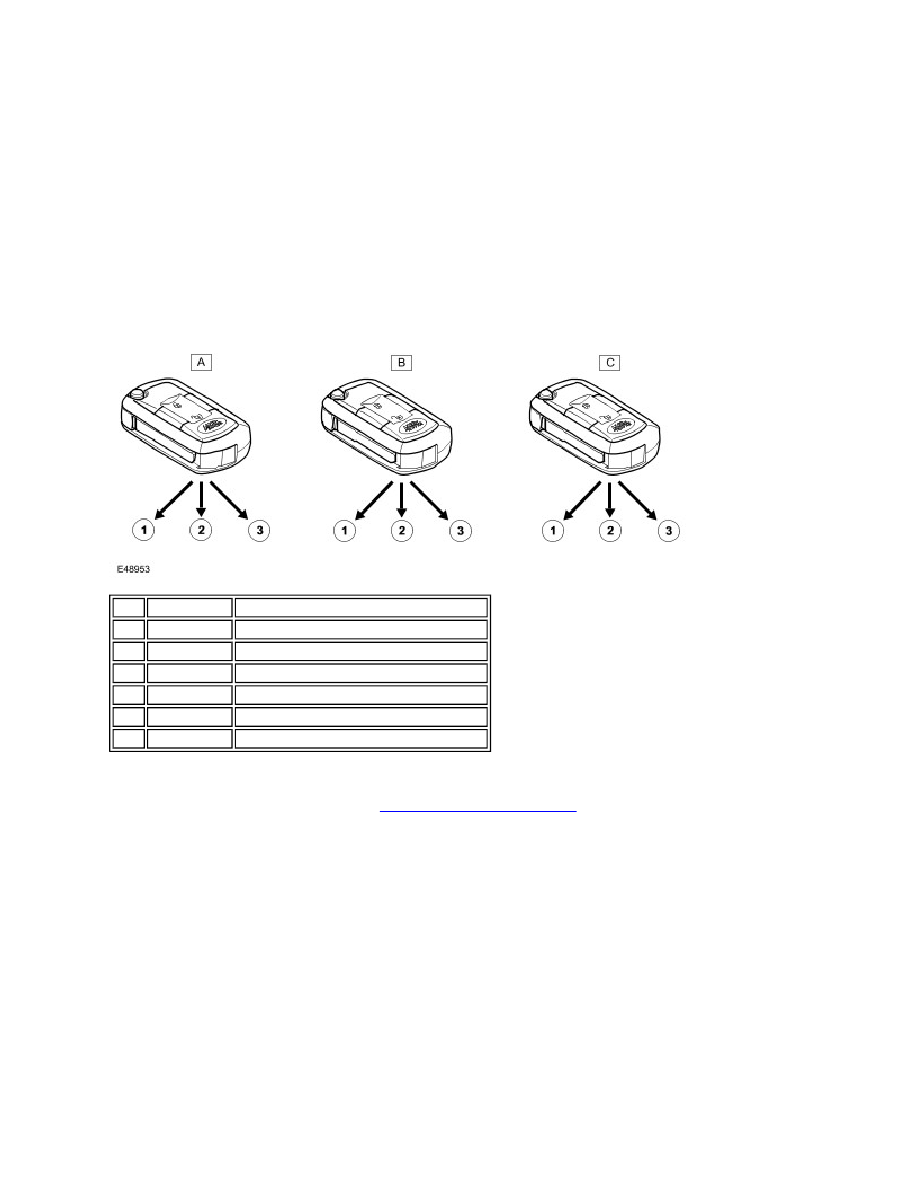

AUDIBLE AND VISUAL CONFIRMATIONS

Item  Part Number

Description

A

 -

Most recent ignition key

B

 -

Second most recent ignition key

C

 -

Third most recent ignition key

1

 -

First reverse gear mirror position store

2

 -

Second reverse gear mirror position store

3

 -

Third reverse gear mirror position store

Reverse gear status is only available with the ignition in position II.
