501-09 Rear View Mirrors: Description And Operation (page 2 of 10)

INTERIOR MIRROR

The interior mirror incorporates either manual dimming or auto-dimming. Manual dimming is performed with a lever on the
underside of the mirror body. Auto-dimming is performed by electrochromic mirror glass.

Depending on vehicle model and market, the auto-dimming interior mirror may also incorporate a HomeLink® universal
transmitter.

NOTE :


Interior mirrors with the universal transmitter and/or the auto-dimming functions are connected to the vehicle wiring by an
electrical connector concealed by the finishers covering the mounting stem. When the ignition switch is in position II, a
battery power feed from the Central Junction Box (CJB) is supplied to the universal transmitter and/or auto-dimming
circuits in the interior mirror.

Light sensors on the front and rear of the interior mirror provide light level inputs for the auto-dimming function.

Interior mirrors which incorporate the universal transmitter have buttons along the lower face for control of the universal
transmitter and auto-dimming functions. They also have a dual colored status indicator on the rear of the mirror which
illuminates when the auto-dimming and universal transmitter functions are active; green for auto-dimming and red for the
universal transmitter.


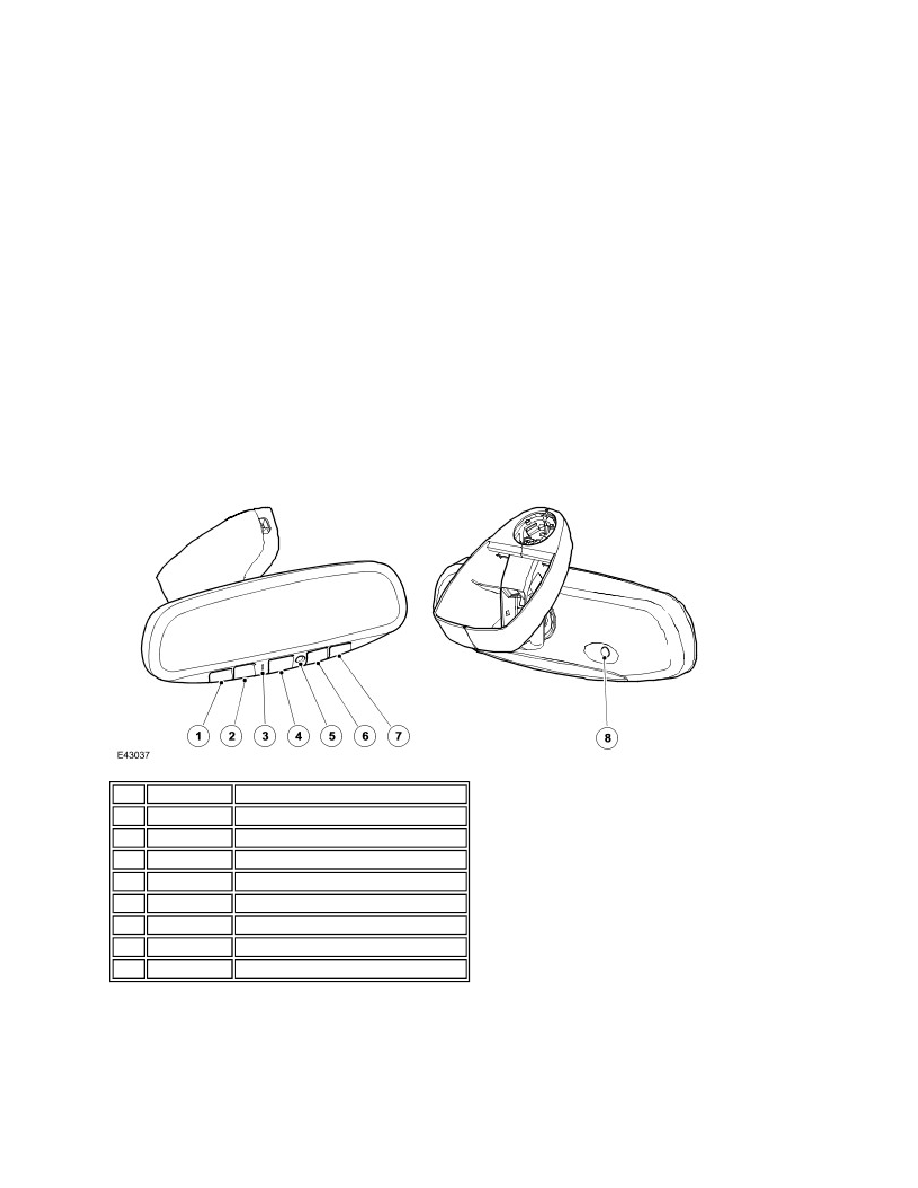

Auto-Dimming Interior Mirror with Universal Transmitter

Auto-Dimming

The auto-dimming interior mirror automatically dims to reduce glare from the headlights of following vehicles in dark or low
light conditions. The auto-dimming function is only enabled while the ignition switch is in position II.

On interior mirrors with a universal transmitter, the auto-dimming function can be selected on and off using the

HomeLink is a registered trademark owned by Johnson Controls Inc.

Item  Part Number

Description

1

 -

Universal transmitter channel 1 button

2

 -

Universal transmitter channel 2 button

3

 -

Status indicator

4

 -

Universal transmitter channel 3 button

5

 -

Rear light sensor

6

 -

Dimming on button

7

 -

Dimming off button

8

 -

Front light sensor
