419-07 Navigation System: Description And Operation (page 10 of 15)


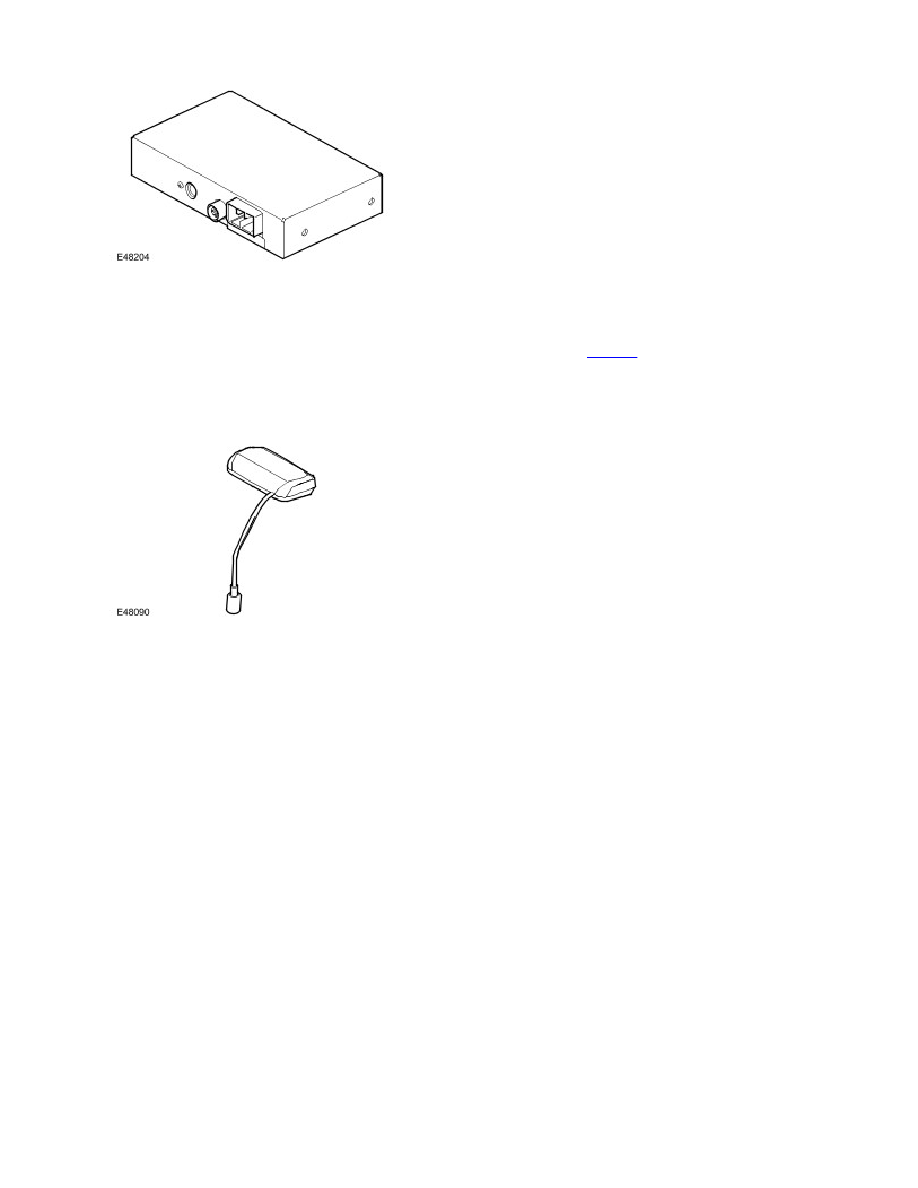

The VICS receiver is located behind the Integrated Head Unit (IHU) in the instrument panel. The VICS receiver is
connected to the navigation computer via a dedicated link.

The VICS receiver, receives information from the beacon antenna in the centre of the instrument panel and the VICS
antenna located in the rear screen element. For additional information, refer to

Antenna

 (415-02 Antenna)

VICS Beacon Antenna


The VICS beacon antenna is located on top of the instrument panel. The antenna receives infra red and RF signals from
road side transmitters.


NAVIGATION SYSTEM OPERATION

The navigation system receives GPS information via the GPS antenna. The GPS signals are used by the navigation
computer to calculate the vehicles position. Once the driver has input a desired destination the navigation computer can
calculate a route, based on the drivers pre-determined preferences or the default settings in the navigation computer.

The navigation system is accessed by pressing the navigation button at the bottom left hand side of the TSD. The driver
will then have the option of on road navigation or off road navigation.


On Road Navigation

On road navigation is initiated by the driver inputting a destination. This can be achieved by:


Typing in and address from the TSD.
Entering a post code.
Choosing a pre-entered address from the address book.
Choosing a point of interest from a an area.

The driver is then guided to the destination by a scrolling map display and voice guidance. The display can be varied by
scale and display type.


Off Road Navigation
