Description Adn Operaton (page 2 of 6)

GENERAL

The heating and ventilation system controls the temperature and flow of air supplied to the vehicle interior. The system
consists of:


An air inlet duct.
A blower.
A blower control module.
A blower relay.
A heater.
Two ventilation outlets.

Fresh or recirculated air flows into the heater assembly from the inlet duct. The blower, and ram effect when the vehicle is
moving, forces the air through the heater assembly. Air from the cabin exhausts through the ventilation outlets.


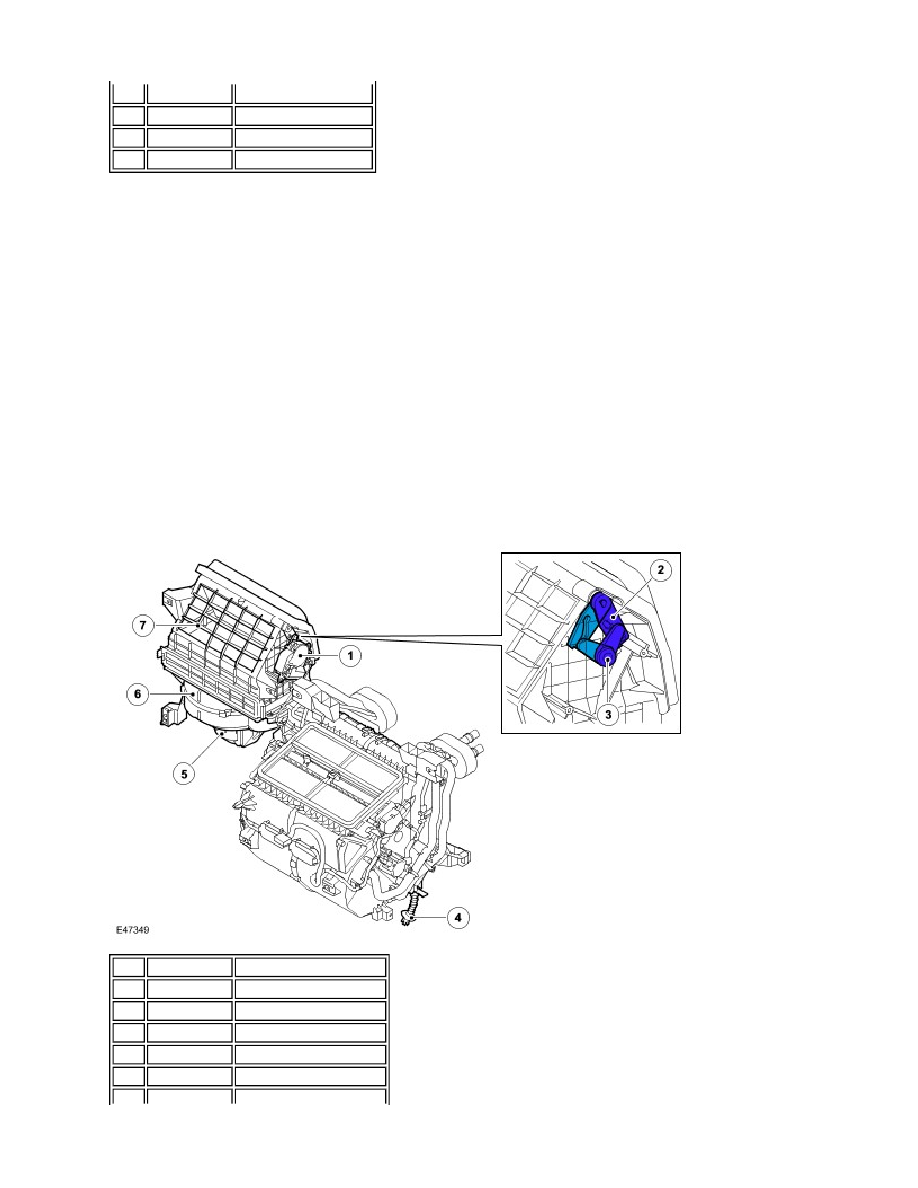

AIR INLET DUCT

NOTE :

3

 -

Blower

4

 -

Air inlet duct

5

 -

Heater

6

 -

Ventilation outlets

RHD version shown, LHD mirror image

Item  Part Number

Description

1

 -

Recirculation door motor

2

 -

Recirculation door arm

3

 -

Recirculation motor arm

4

 -

Evaporator drain tube

5

 -

Blower
