Transfer Case 4.4L (page 3 of 3)

Make

Land Rover

Model

Discovery LR3/Disco 3

Section

Removal

308-07B Transfer CaseTransfer Case 4.4L · page 3 of 3

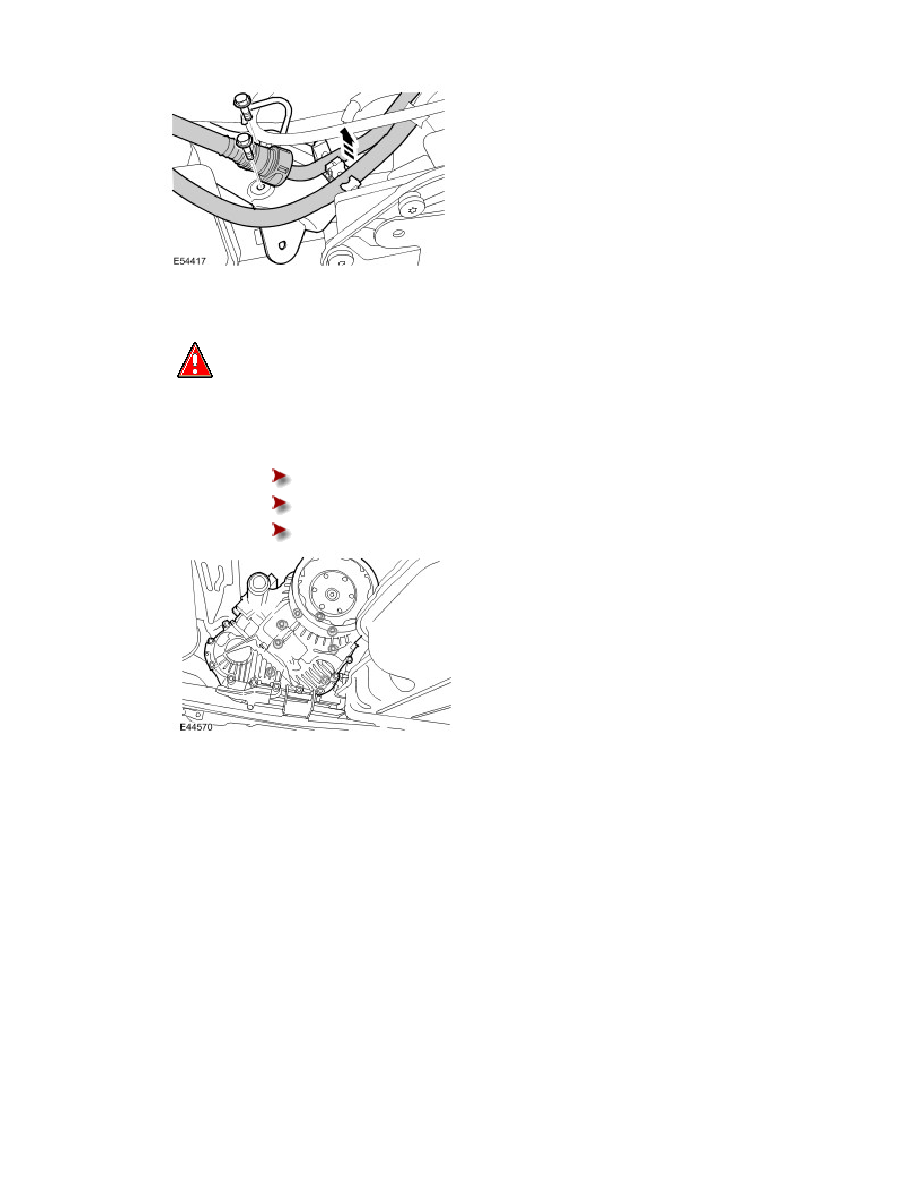

10 .

  Support the transmission on a jack.

11 .



   WARNING: Secure the component to the transmission jack.

  Using a transmission jack, support the transfer case.

12 .

  With assistance, remove the transfer case.



Remove the 8 bolts.



Move the fuel hose support bracket aside.



Remove the O-ring seal.
