Pilot Bearing Removal

Pilot Bearing (12.21.45)

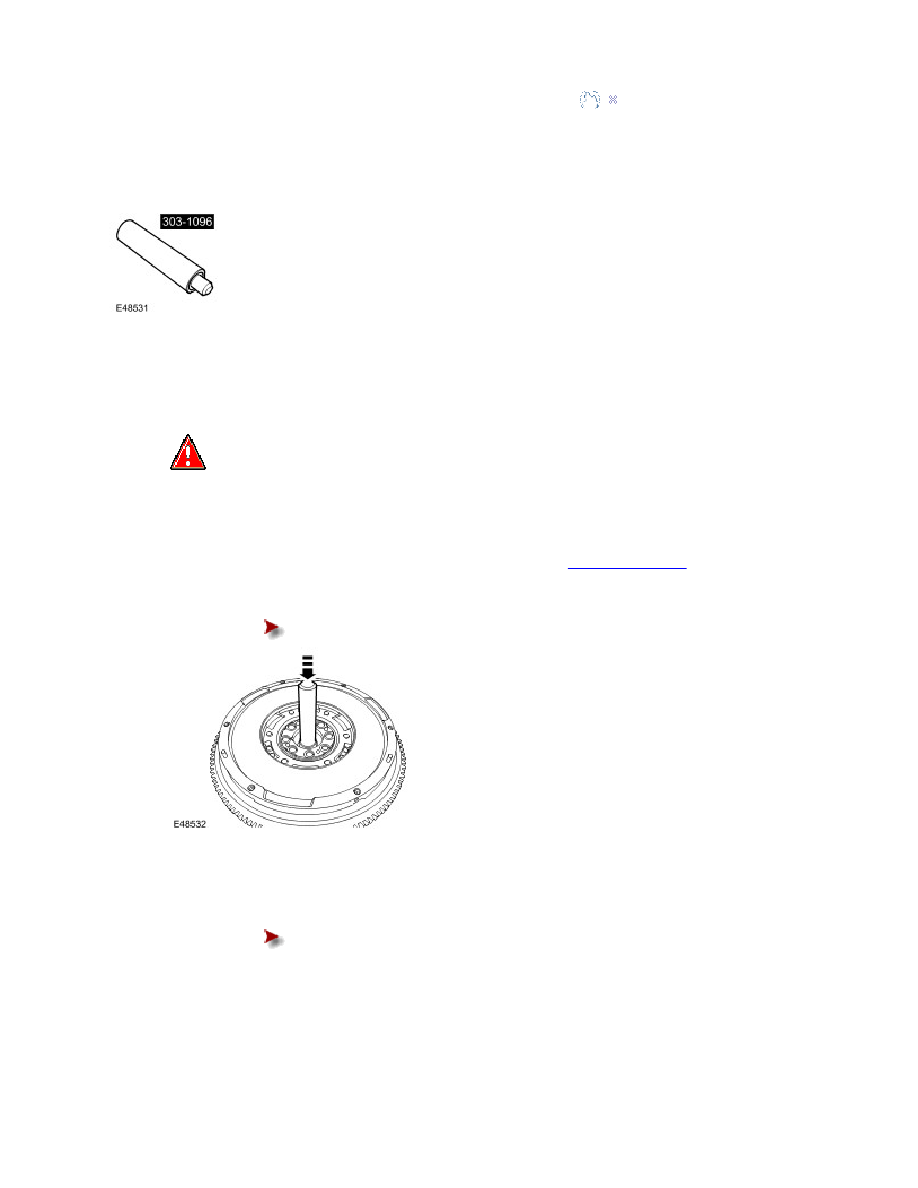

Special Service Tools


Pilot (spigot) bearing installer/clutch alignment
303-1096


Removal

Installation

Published : May 11, 2004

1 .

   WARNING: Do not work on or under a vehicle supported only by a jack. Always support the

vehicle on safety stands.

  Raise and support the vehicle.

2 .

  Remove the flywheel. For additional information, refer to

Flywheel (12.53.07)

 (Section 303-01)

3 .

  Remove the pilot bearing.

With the flywheel supported, use a drift.

1 .

  Using the special tool, install the pilot bearing.

Clean the component mating faces.
