308-01 Clutch- 2.7 Diesel: Description And Operation (page 6 of 7)


As the name implies, this assembly consists of two main assemblies; the primary side, which is secured to the crankshaft
with eight fixing's, and the secondary side to which the clutch cover assembly is secured.

The primary side carries the starter ring gear, and a roller bearing into which the long gearbox input shaft is supported.

The secondary side provides the surface to which the clutch friction material contacts, and is fitted with three dowels and
6 fixing holes, which are used to secure the clutch cover to the flywheel.


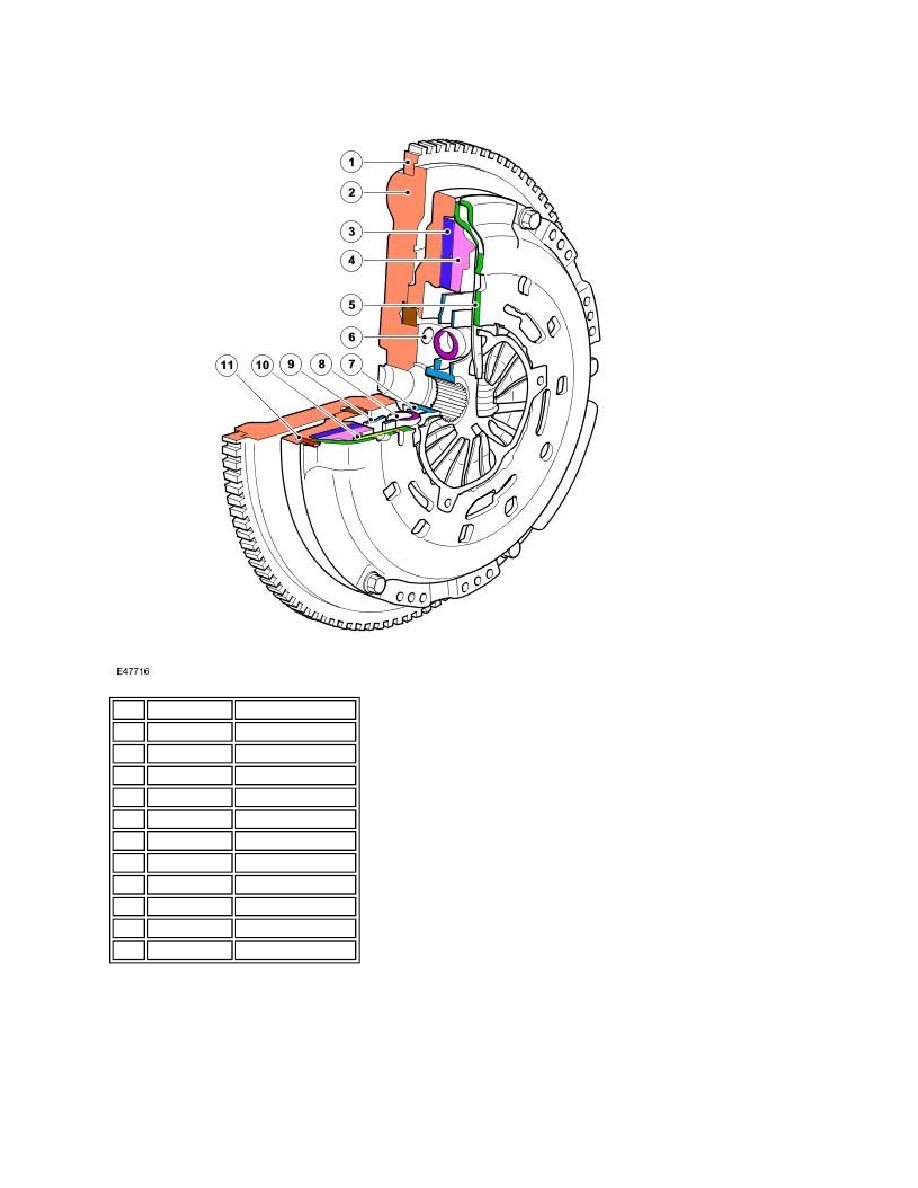

Item  Part Number

Description

1

 -

Ring gear

2

 -

Primary flywheel

3

 -

Inner drive plate

4

 -

Spring housing

5

 -

Cover

6

 -

Mounting hole

7

 -

Splined hub

8

 -

Damper springs

9

 -

Inner drive plate

10

 -

Spring housing

11

 -

Secondary flywheel
