Evaporative Emission Canister Purge Valve Removal




Evaporative Emission Canister Purge Valve (17.15.39)

Removal









Installation







Published : Aug 23, 2004

1 .



Disconnect the battery ground cable. For additional information, refer to

Specifications

 (Section 414-

00)

2 .



Remove the intake manifold casting. For additional information, refer to

Intake Manifold (30.15.02)



(Section 303-01)

3 .

NOTE :

  Note the fitted position.

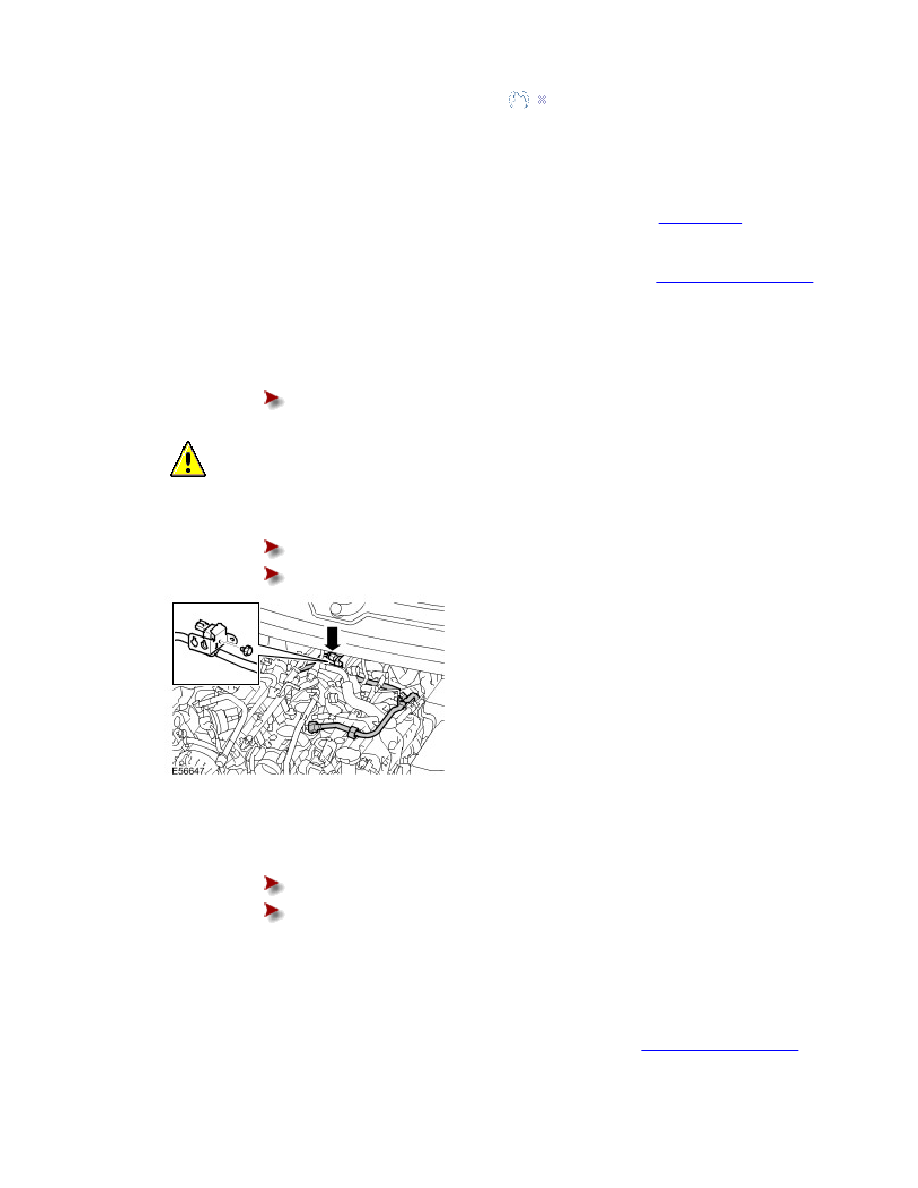

  Release the purge valve from the mounting bracket.



Remove the bolt.

4 .



   CAUTION: Before disconnecting or removing the components, ensure the area around the joint

faces and connections are clean. Plug open connections to prevent contamination.

Remove the purge valve.



Disconnect the 2 hoses.



Disconnect the electrical connector.

1 .

  Connect the purge valve.



Connect the hoses.



Connect and secure the electrical connector.

2 .

NOTE :

  Align to the position noted on removal.

  Install the purge valve, align the peg and tighten the bolt to 6 Nm (4 lb.ft).

3 .



Install the intake manifold casting. For additional information, refer to

Intake Manifold (30.15.02)



(Section 303-01)
