The knock control function.
On automatic transmission models, the shift control function.
The idle speed control function.

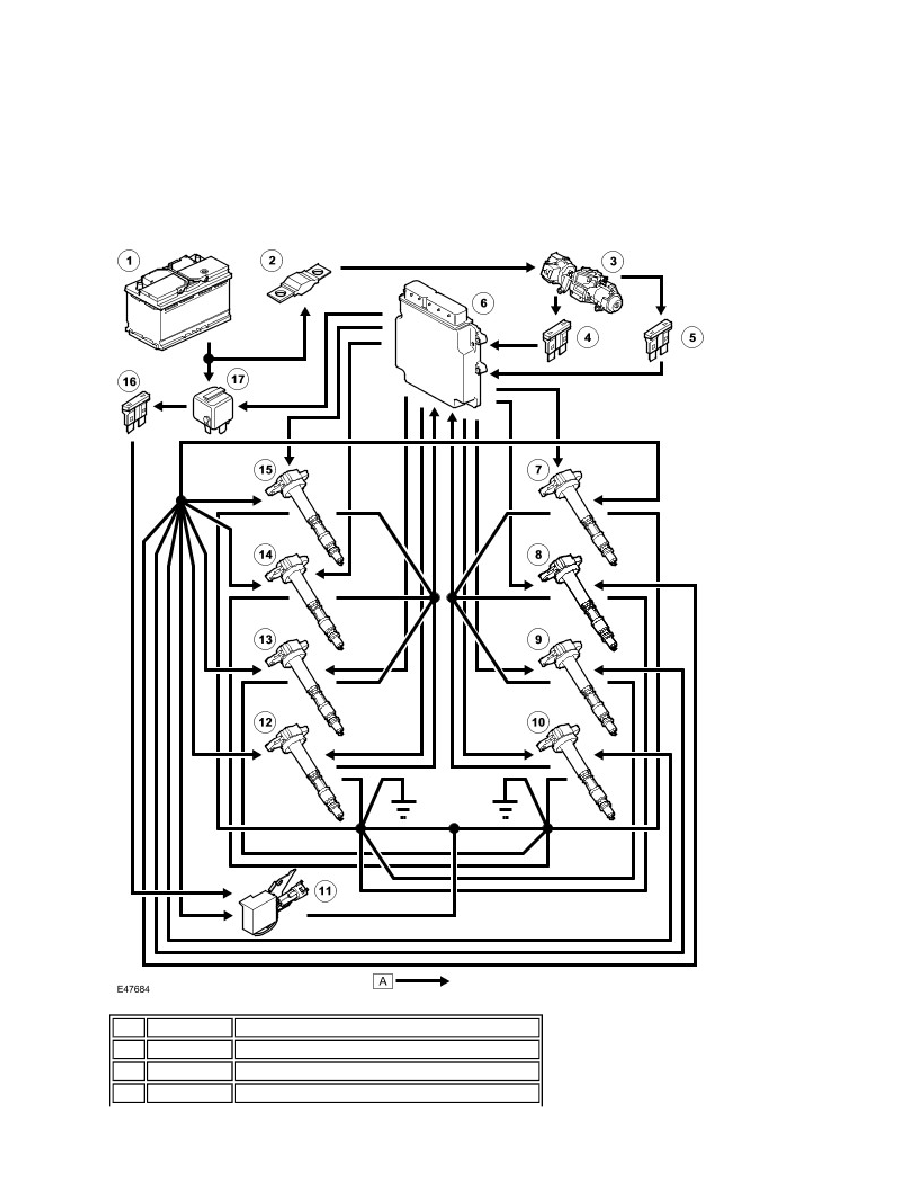

ENGINE IGNITION CONTROL DIAGRAM

NOTE :









A = Hardwired connections

Item  Part Number

Description

1

 -

Battery

2

 -

Fusible link 11E, BJB (battery junction box)

3

 -

Ignition switch
