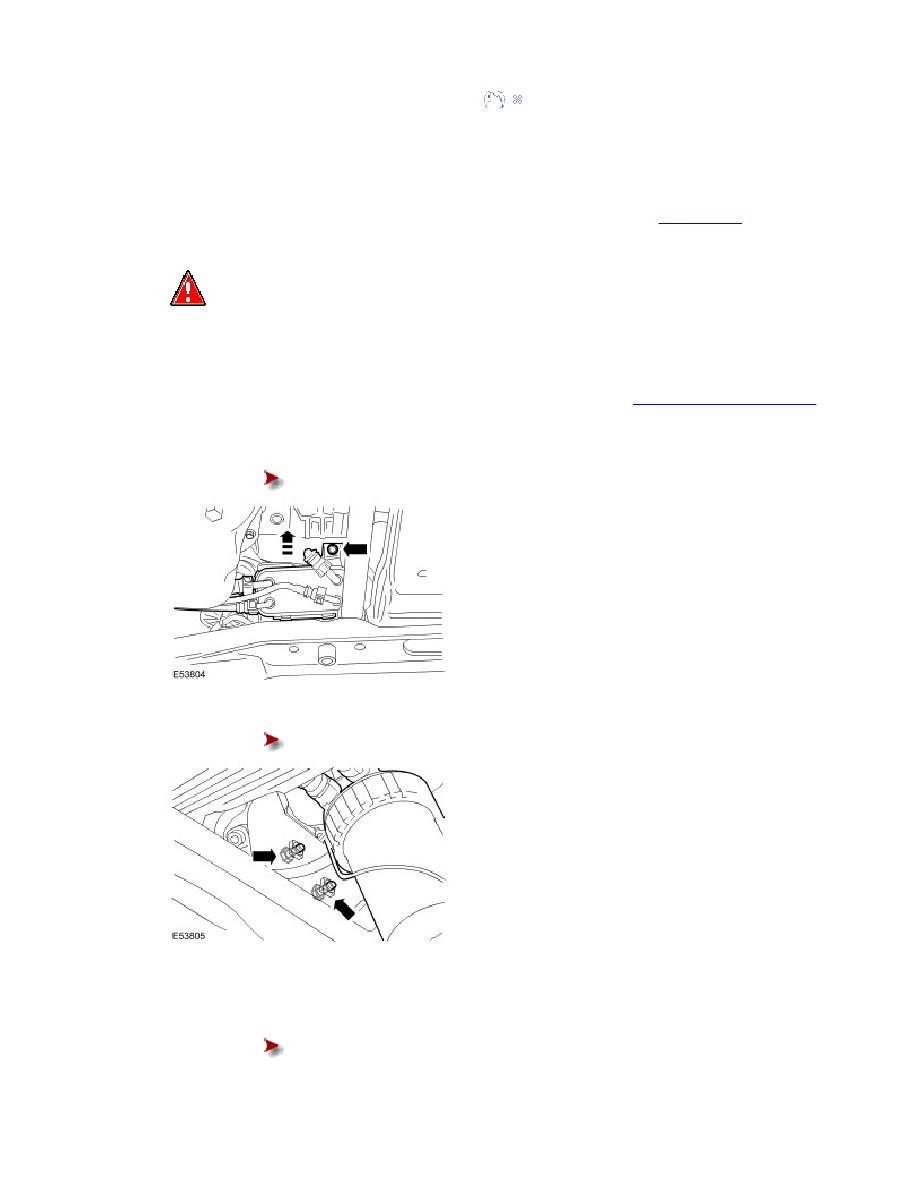

Starter Motor Removal

Starter Motor (86.60.01)

Removal

Published : Jul 14, 2004

1 .

Disconnect the battery ground cable. For additional information, refer to

Specifications

 (Section 414-

00)

2 .

   WARNING: Do not work on or under a vehicle supported only by a jack. Always support the

vehicle on safety stands.

  Raise and support the vehicle.

3 .

Remove the engine undershield. For additional information, refer to

Engine Undershield (76.10.50)

(Section 501-02)

4 .

  Release the fuel cooler.

Remove the retaining bolt.

5 .

  Reposition the fuel cooler and the fuel filter housing.

Remove the two retaining bolts.

6 .

  Remove the wiring harness retaining bolt.

7 .

  Remove the starter motor retaining bracket.

Remove the four retaining bolts.
