Engine Cooling

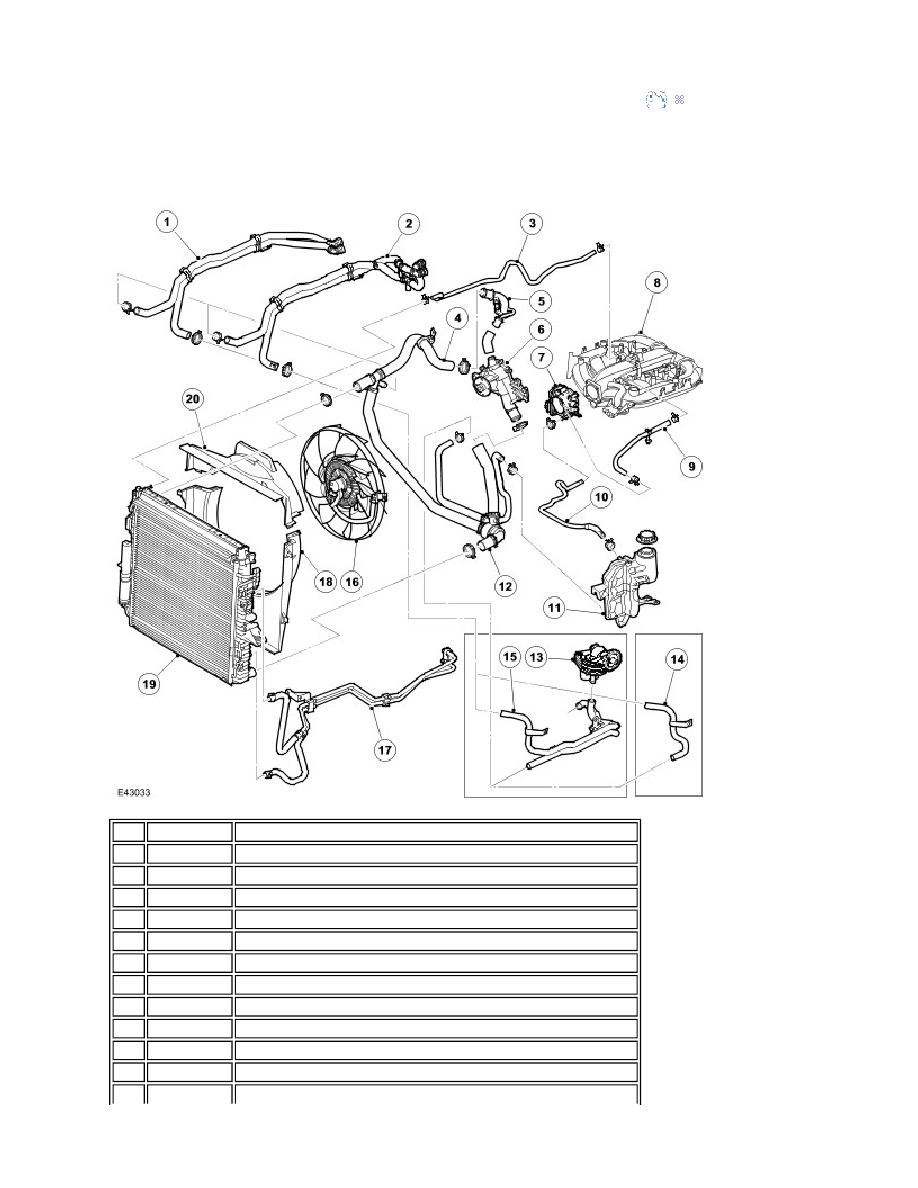

Cooling System Component Layout





Published : Apr 28, 2004

Item  Part Number

Description

1

 -

Heater hose, inlet and outlet

2

 -

Heater hose, inlet and outlet for vehicles with rear heater (optional)

3

 -

Hose, radiator to intake manifold

4

 -

Radiator top hose

5

 -

Engine Coolant Temperature (ECT) sensor

6

 -

Water pump

7

 -

Throttle body

8

 -

Inlet manifold

9

 -

Throttle body coolant hose

10

 -

Hose, engine to expansion tank

11

 -

Expansion tank
