303-01B Engine- 4.4LCamshafts LH · page 5 of 11

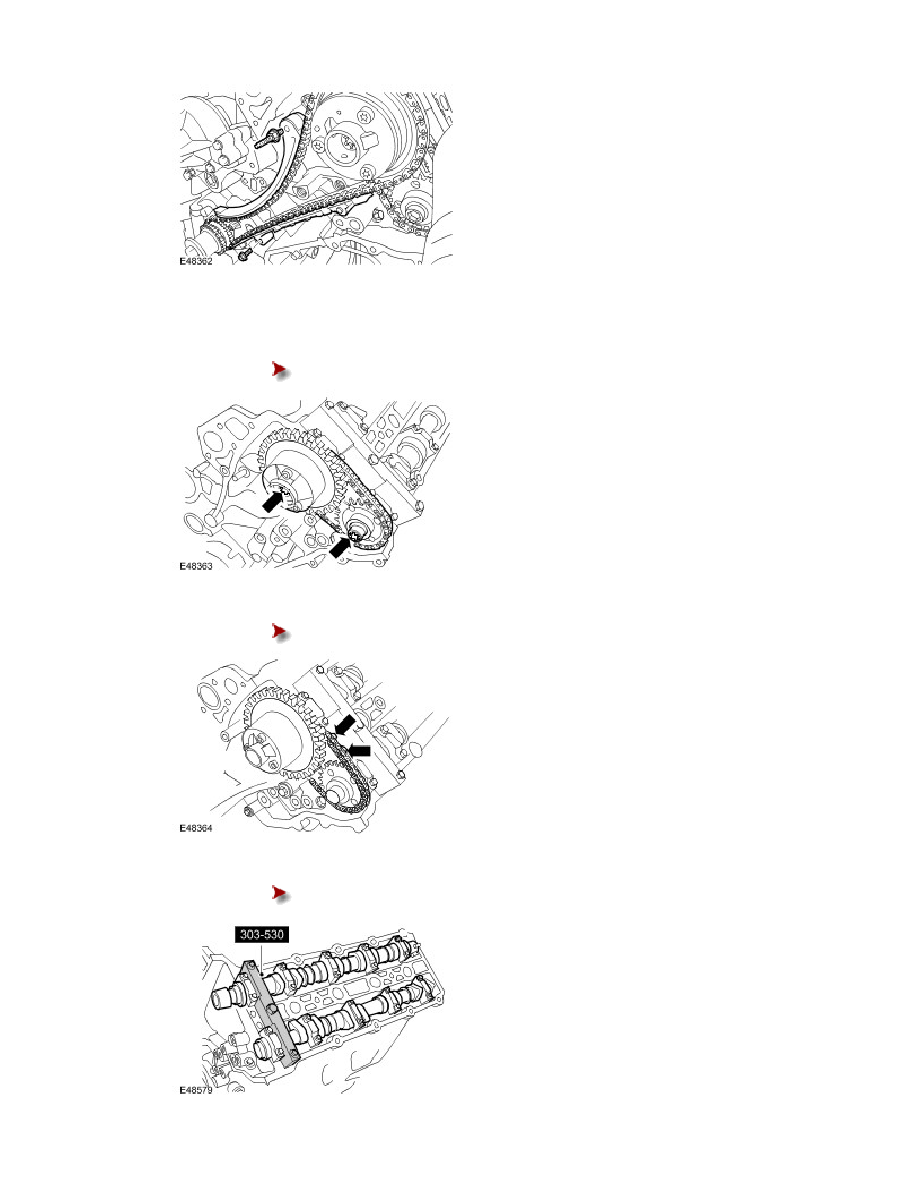

17 .

  Remove the LH primary timing chain.

18 .

  Remove the camshaft sprockets.



Remove the 2 bolts.

19 .

  Remove the secondary timing chain tensioner and the secondary timing chain.



Remove the 2 bolts.

20 .

  Remove the special tool from the LH cylinder head.



Remove the 3 bolts.
