Timing Drive Components

Timing Drive Components (12.65.13)

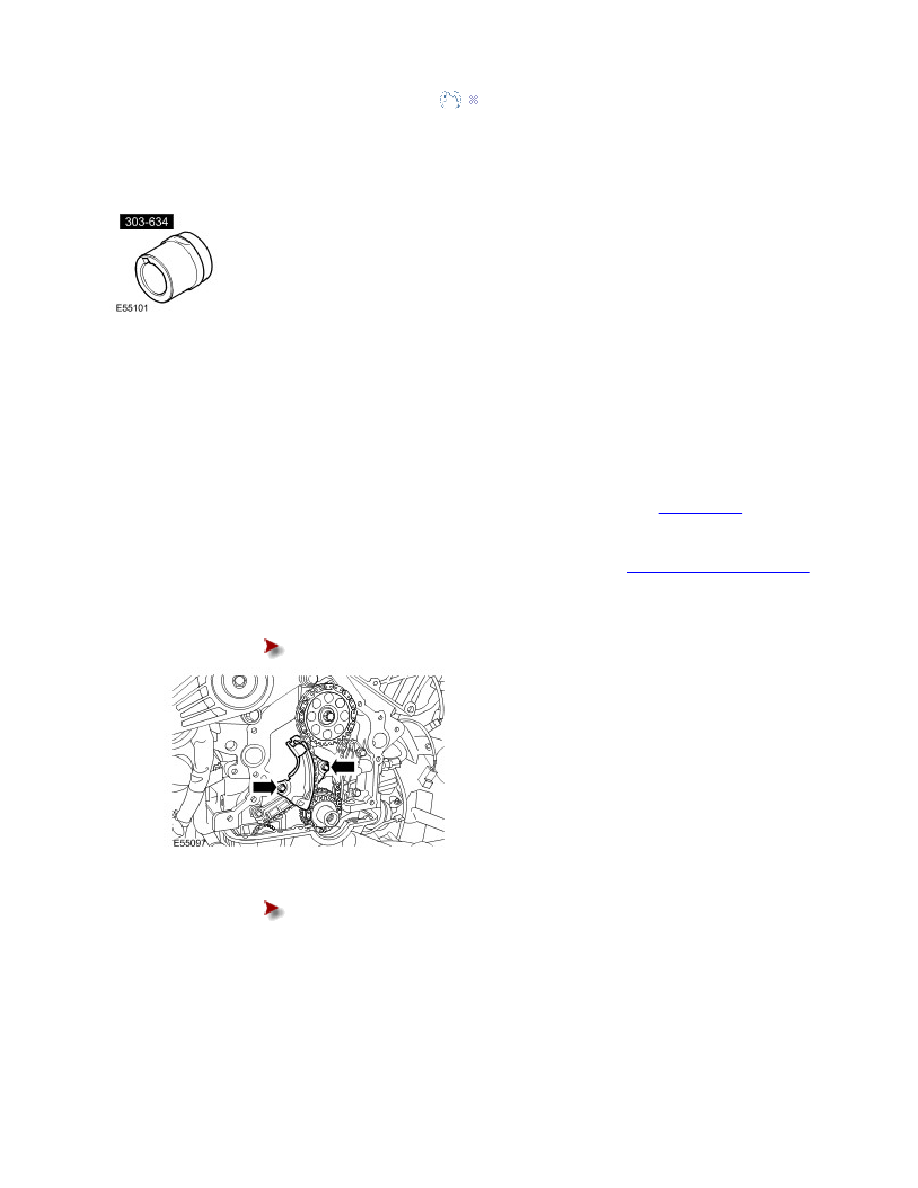

Special Service Tools


Crankshaft rotating tool
303-674


Removal

NOTE :

Published : Oct 13, 2004

This procedure covers the removal and installation of the following components: Primary timing chain tensioner,
timing chain guide, jackshaft sprocket, crankshaft sprocket and timing chain.

1 .

Disconnect the battery ground cable. For additional information, refer to

Specifications

 (Section 414-

00)

2 .

Remove the engine front cover. For additional information, refer to

Engine Front Cover (12.65.01)

(Section 303-01)

3 .

  Remove the primary timing chain tensioner.

Remove the 2 bolts.

4 .

  Remove the primary timing chain tensioner guide.

Remove the 2 bolts.
