Land Rover LR3/Disco 331 · 303-01A Engine- 4.0L
31 · Engine

Camshaft Drive Cassette RH

Make
Land Rover
Model
Discovery LR3/Disco 3
Section
In Vehicle Repair › Camshaft Drive Cassette RH
303-01A Engine- 4.0LCamshaft Drive Cassette RH · page 1 of 3
background image




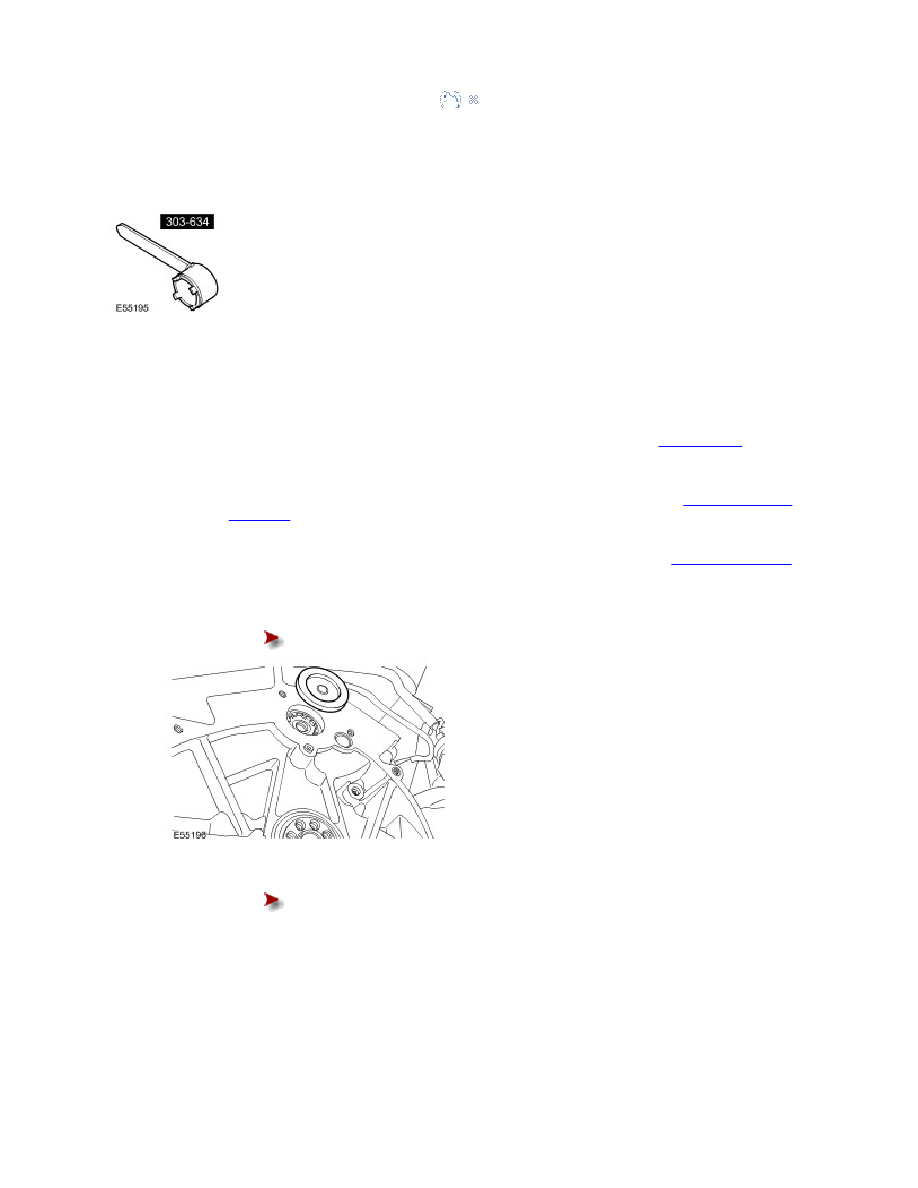

Camshaft Drive Cassette RH (12.65.37)

Special Service Tools




Sprocket holding tool RH rear cassette
303-643


Removal









Published : Jun 30, 2004

1 .



Disconnect the battery ground cable. For additional information, refer to

Specifications

 (Section 414-

00)

2 .



Remove the RH cylinder head assembly. For additional information, refer to

Cylinder Head RH

(12.29.05)

 (Section 303-01)

3 .



Remove the torque converter flexplate. For additional information, refer to

Flexplate (12.53.13)



(Section 303-01)

4 .

  Remove the cylinder block jackshaft plug.



Drift to release.

5 .

  Using the special tool, remove the RH cassette jackshaft drive, sprocket bolt.



Remove and discard the Torx bolt.
