206-07 Power Brake ActuationDescription And Operation Brake Booster · page 2 of 6
background image

NOTE :









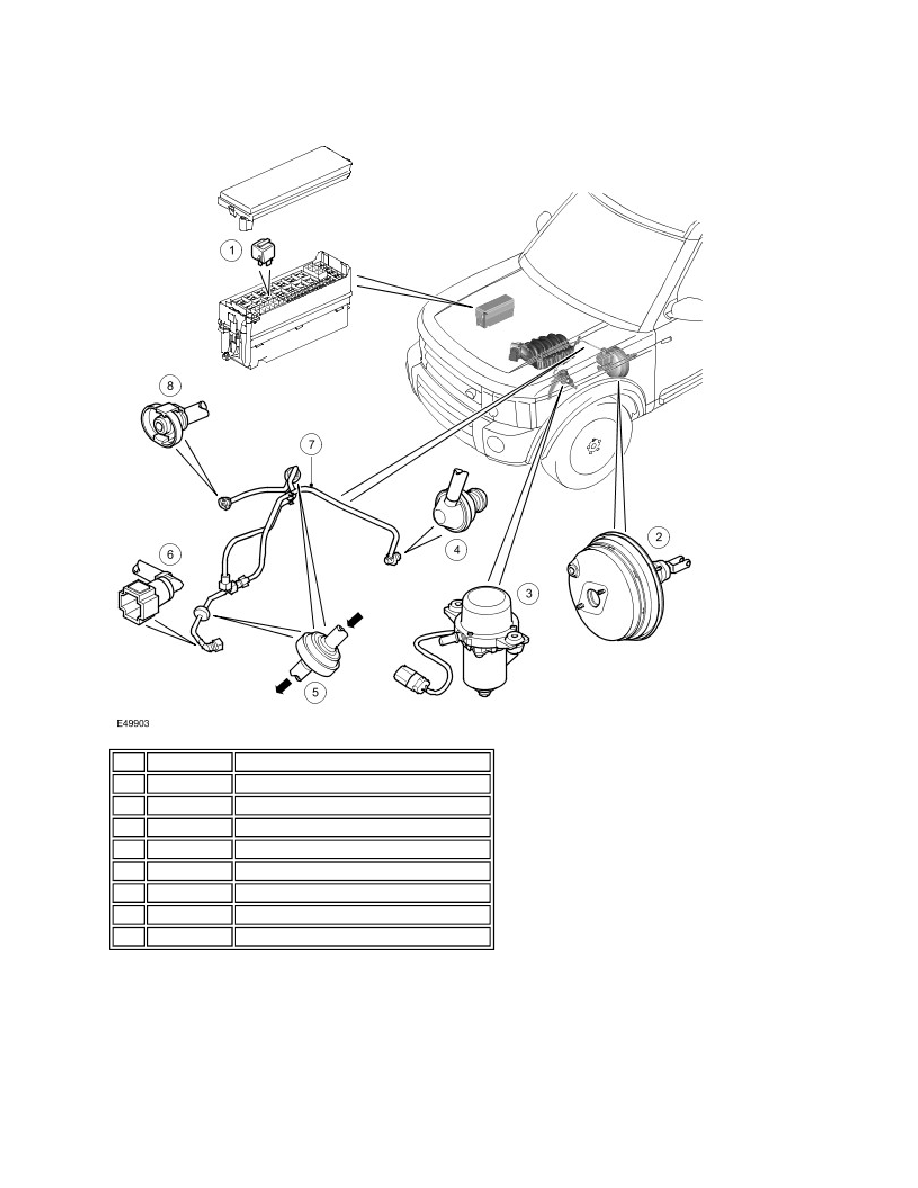

COMPONENT LOCATIONS - 2.7L DIESEL

NOTE :





LHD shown, RHD similar

Item  Part Number

Description

1

 -

Vacuum pump relay

2

 -

Brake booster

3

 -

Vacuum pump

4

 -

Vacuum pipe connection to brake booster

5

 -

Check valve

6

 -

Vacuum pipe connection to vacuum pump

7

 -

Vacuum pipes

8

 -

Vacuum pipe connection to inlet manifold

 LHD

shown
