Brake Pedal And Bracket With Automatic Transmission Removal

Brake Pedal and Bracket - Vehicles With: Automatic Transmission
(70.35.03)

Removal

Published: Oct 13, 2004

1 .

Remove the headlamp switch. For additional information, refer to

Headlamp Switch (86.65.09)

(Section 417 -01)

2 .

Remove the stoplamp switch. For additional information, refer to

Stoplamp Switch (70.35.42)

(Section 417 -01)

3 .

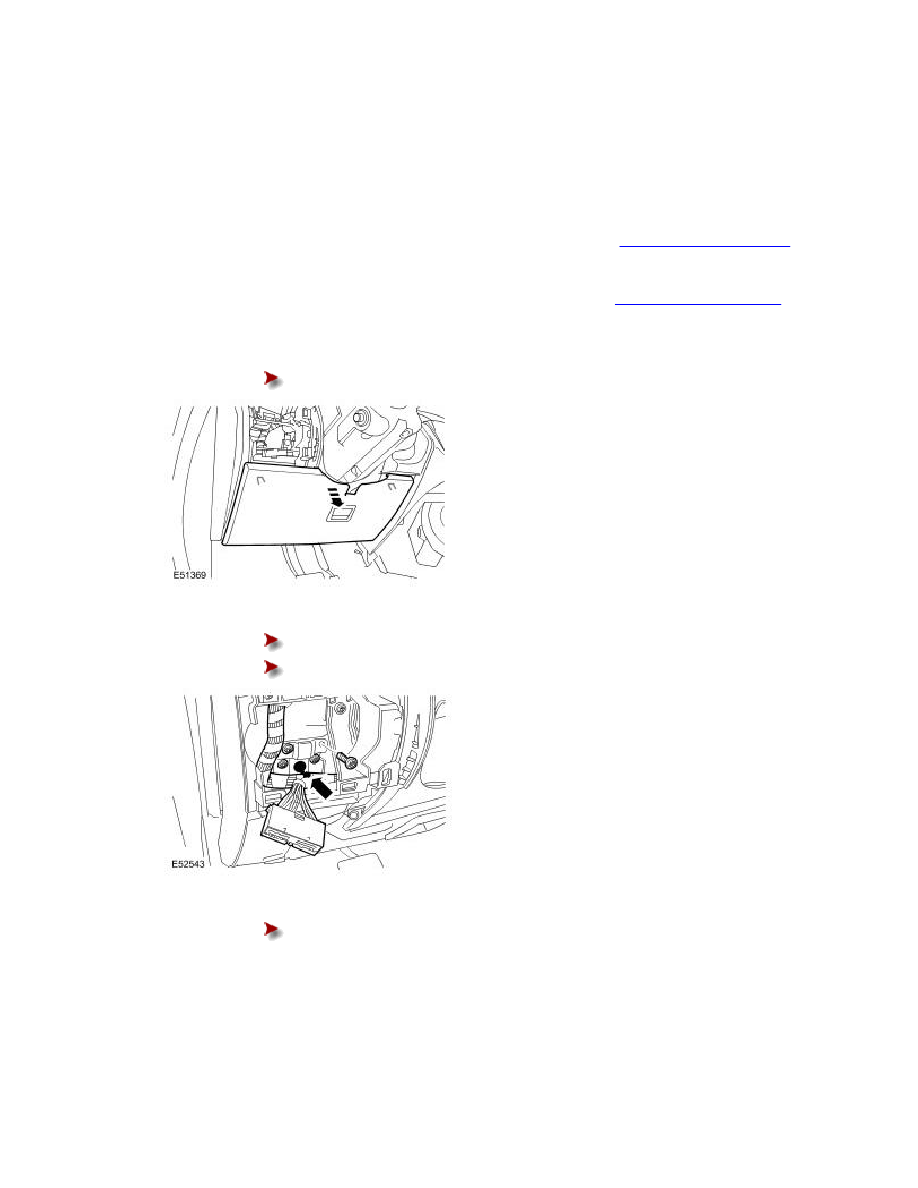

  Remove the instrument panel access panel.

Release the 2 clips.

4 .

  Remove the brake pedal bracket.

Release the wiring harness clip.

Remove the 4 Torx bolts.

5 .

  Remove the brake pedal clevis pin.

Remove the clip.
