Shoes (page 3 of 5)

Installation

11 .

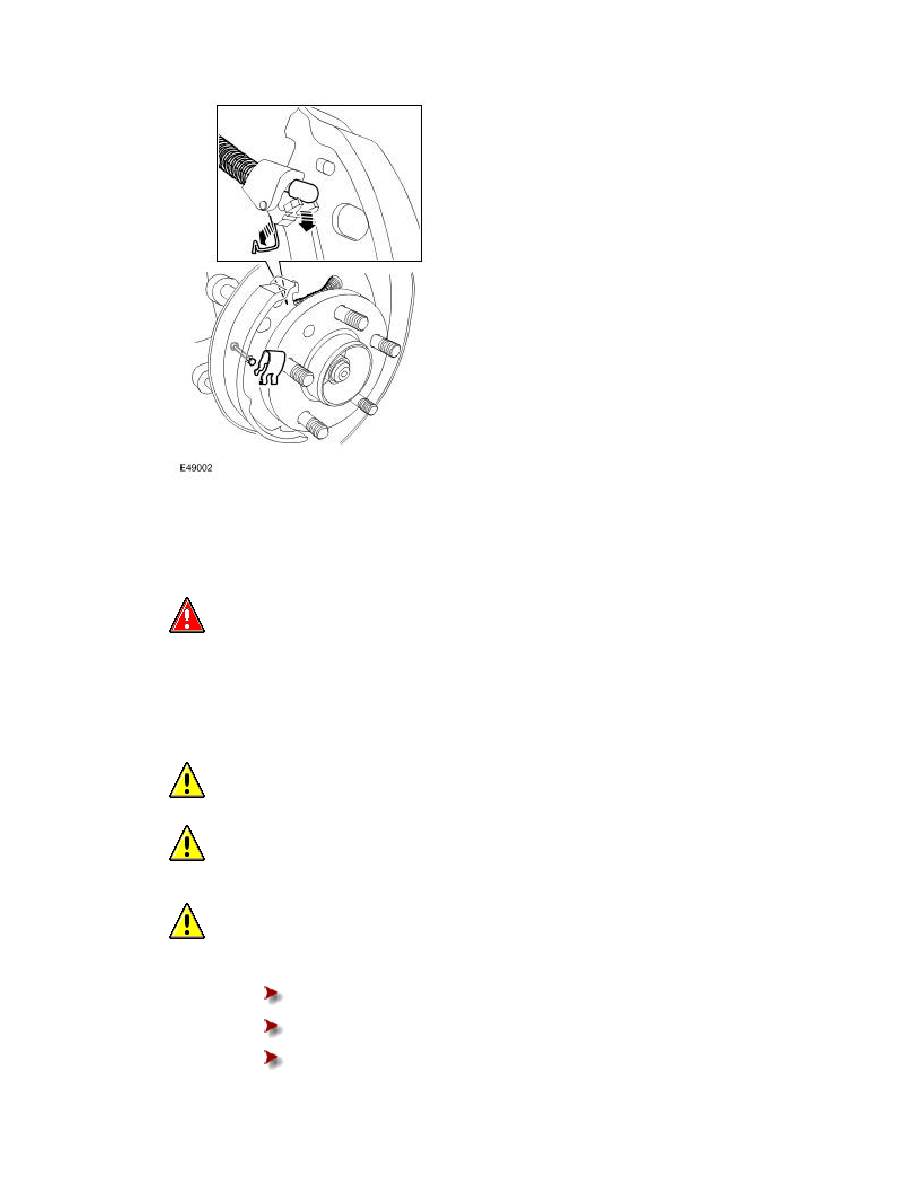

  Repeat the above procedure for the other side.

1 .

   WARNING: Do not use compressed air to clean brake components. Dust from friction materials

can be harmful if inhaled.

  Clean the backing plate and apply grease to the brake shoe contacts.

2 .

  Clean the adjuster and set it to its minimum extension.

3 .

   CAUTION: Make sure the brake shoe spring is not over stretched.

   CAUTION: Make sure the closed end of the retaining clip is installed facing the brake shoe

adjuster. Failure to follow this instruction may result in damage to the vehicle.

   CAUTION: Illustration 'A' is the LH side and 'B' is the RH side.

Install the secondary brake shoe.

Connect the parking brake cable.

Connect the parking brake cable retaining spring to the brake shoe lever, making sure the
spring is not twisted.

Install the hold -down spring and retaining pin.
