Front Brake Description And Operation

Make

Land Rover

Model

Discovery LR3/Disco 3

Section

Front Brake Description And Operation

206-03 Front Brake DiscFront Brake Description And Operation · page 1 of 2

Front Disc Brake

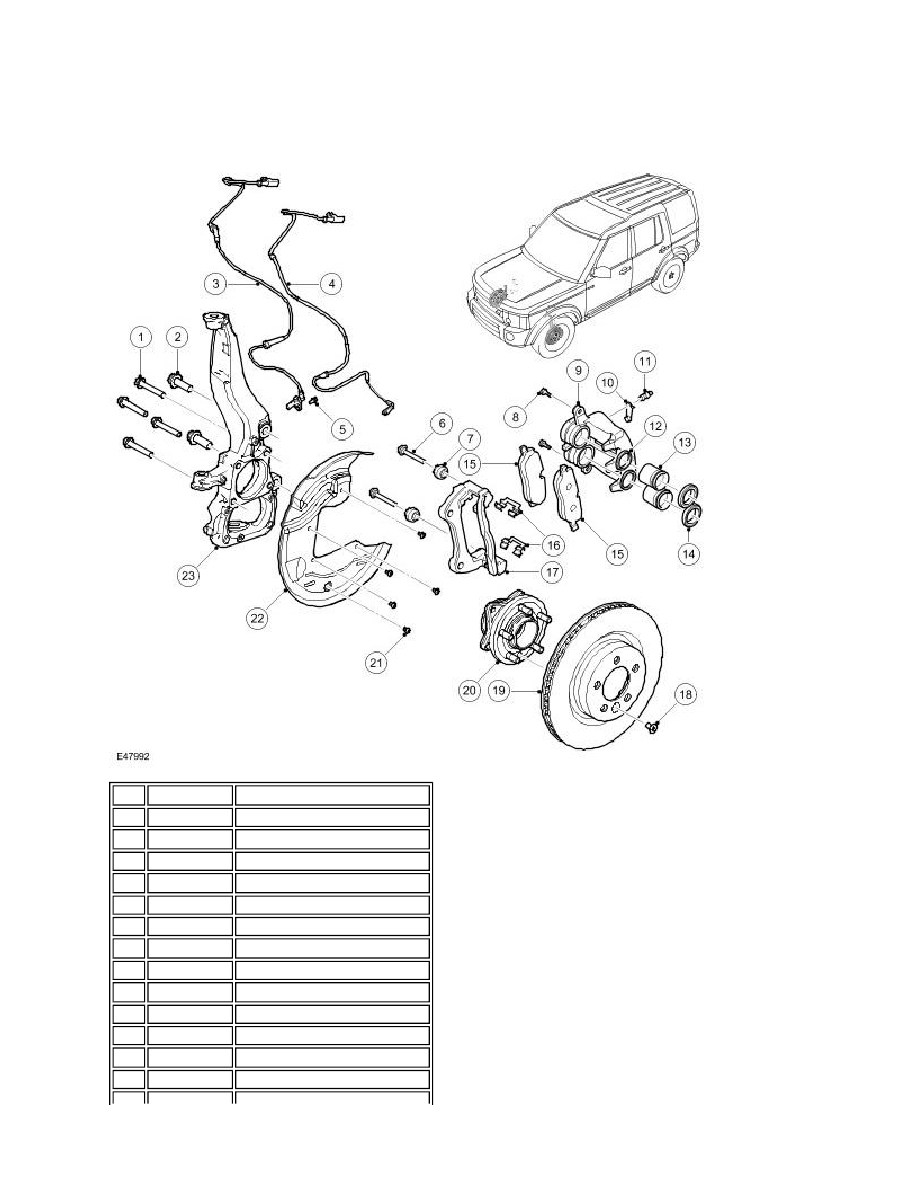

COMPONENT LOCATIONS





Item Part Number

Description

1

 -

Hub bearing assembly bolt (x 4)

2

 -

Caliper bolt (x 2)

3

 -

Wheel speed sensor

4

 -

Brake pad wear sensor lead

5

 -

Wheel speed sensor bolt

6

 -

Guide pin (x 2)

7

 -

Guide pin dust cover (x 2)

8

 -

Guide pin bolt (x 2)

9

 -

Caliper body

10

 -

Bleed screw dust cap

11

 -

Bleed screw

12

 -

Piston seal (x 2)

13

 -

Piston (x 2)
