Front Disc Runout Check (70.12.15.01) (page 2 of 4)

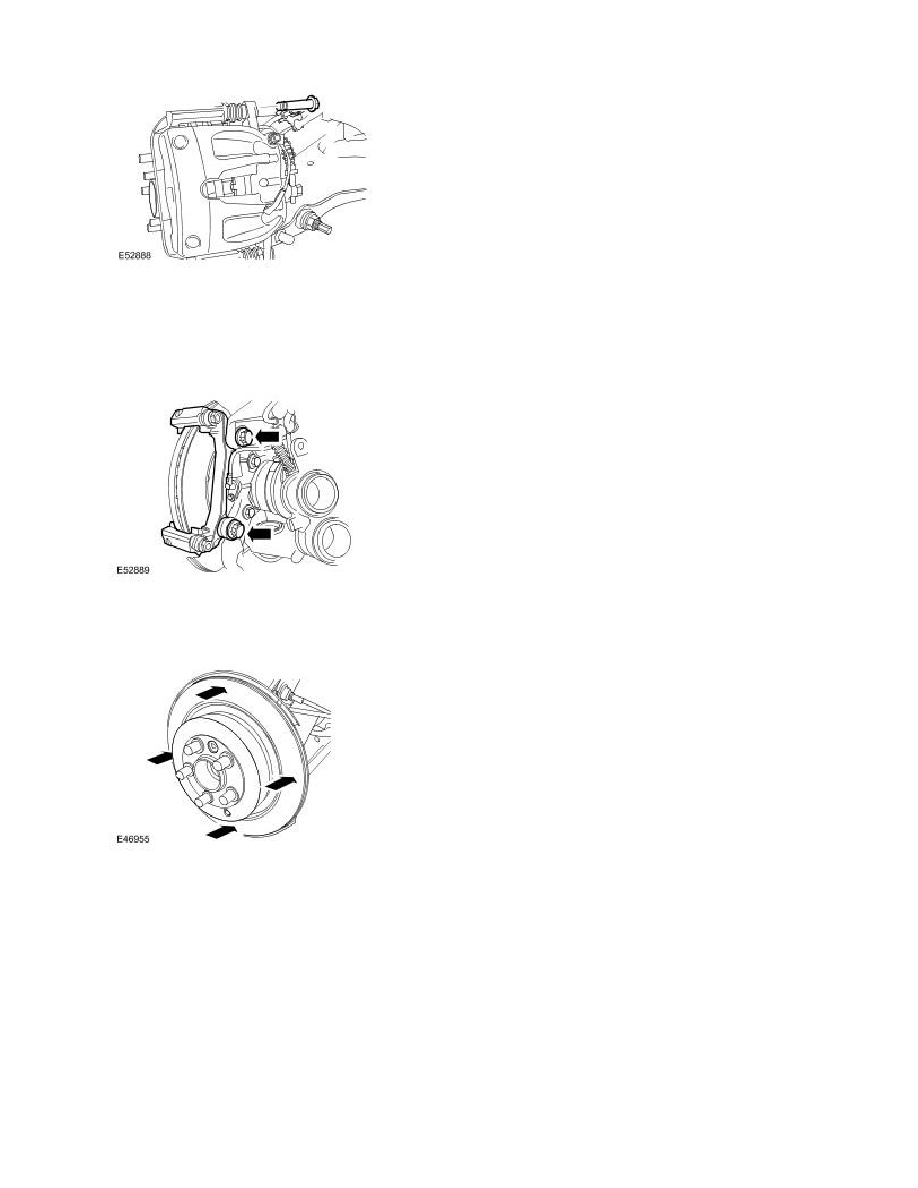

5.  Tie the brake caliper housing aside.


6.  Remove the brake caliper anchor plate.


7.  Measure the brake disc thickness at four points around the brake disc.


8.  Using the special tool, install a dial indicator gauge to the brake caliper lower mounting.

l

Remove the 2 bolts.

l

Renew the brake disc if the thickness is less than the service limit, or if the maximum thickness variation is

exceeded. Brake disc thickness, NEW = 30 mm, Service limit = 27 mm.

l

Position the dial indicator gauge plunger 5 mm in from the outer edge of the brake disc.
